    Shhh! Silent Computing Giant

    TUXEDO PRO XL - Gen1 - Intel

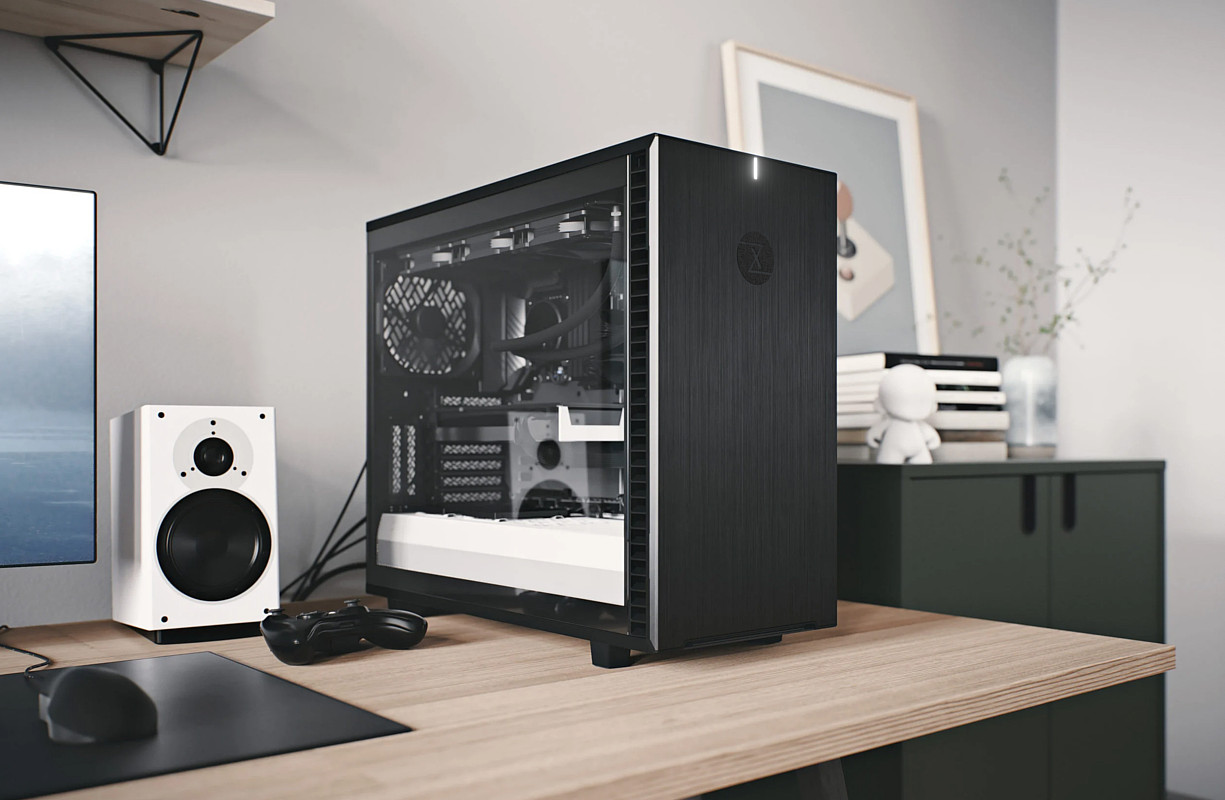

    Maximum performance. Minimal noise. TUXEDO PRO XL combines fastest high-end computing power with exceptional cooling and noise-damped side panels for whisper-quiet fan acoustics even at heavy workloads or immersive 4K gaming.

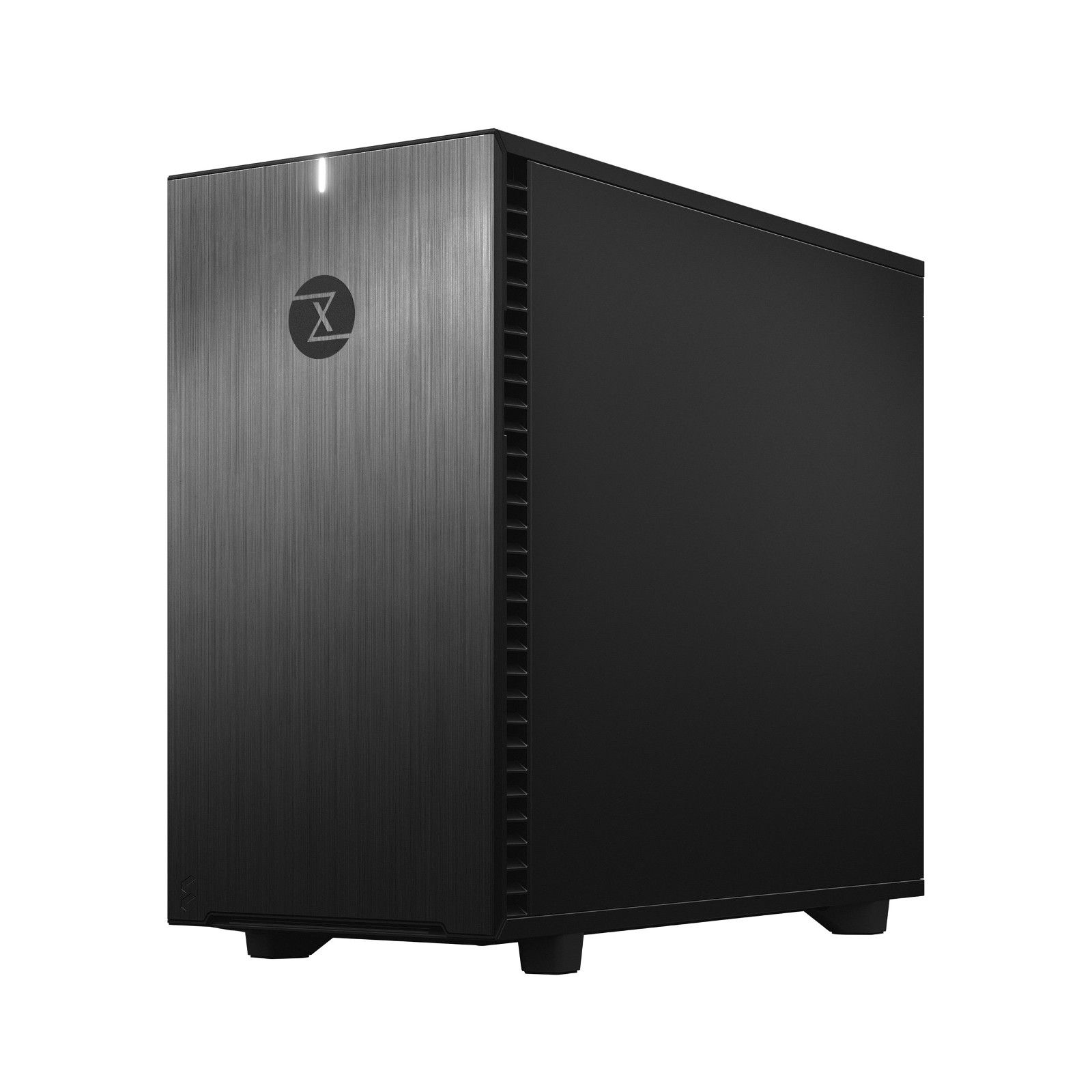

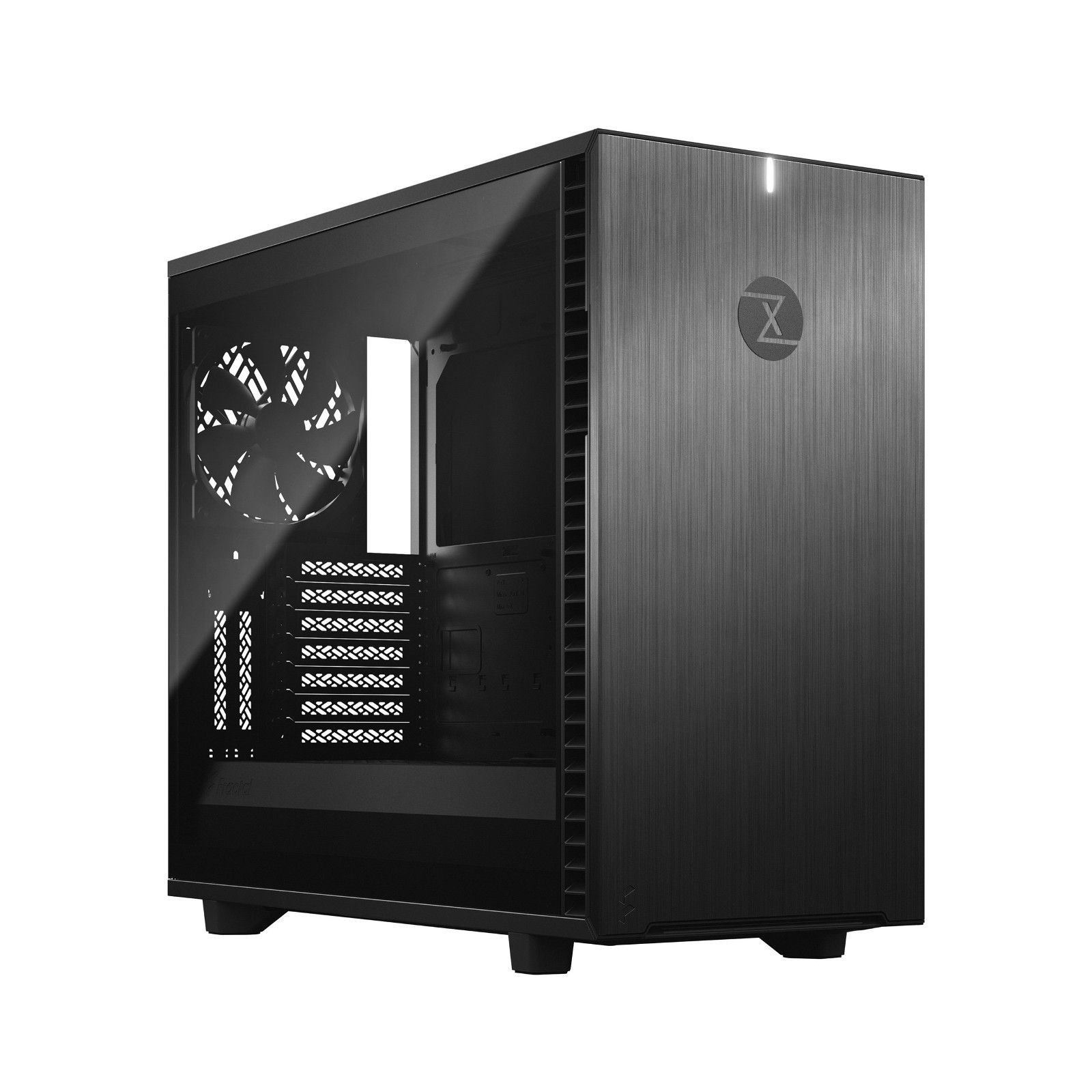

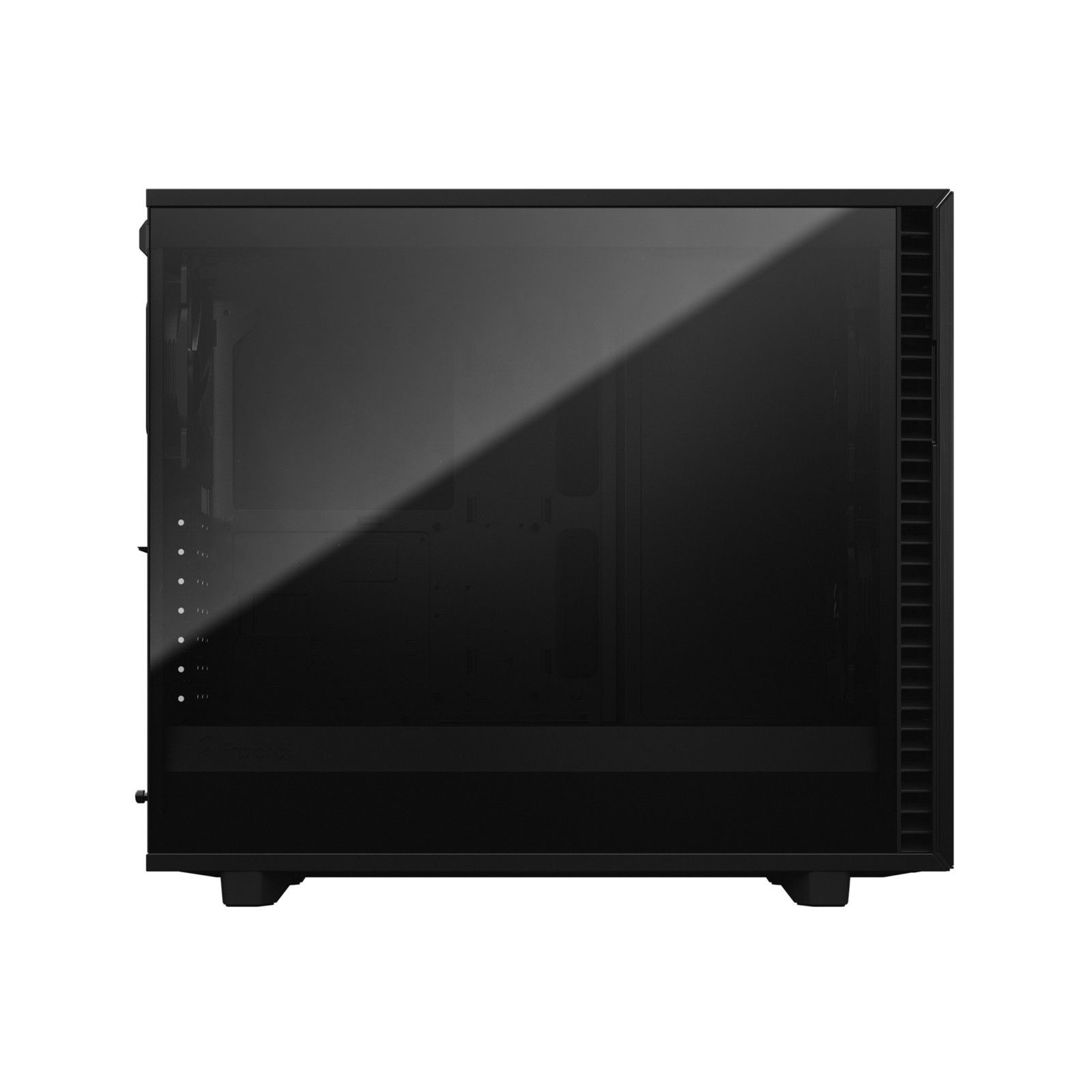

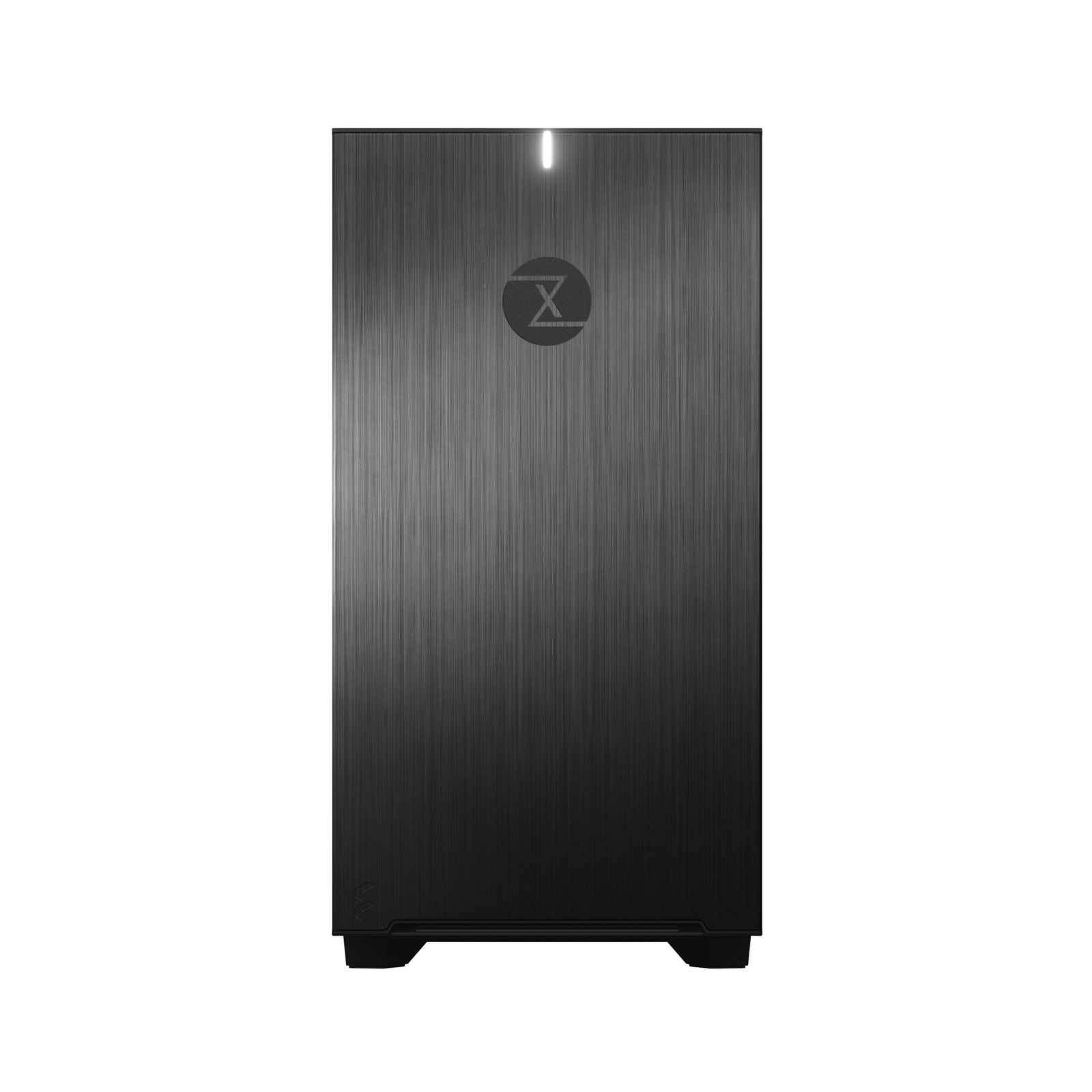

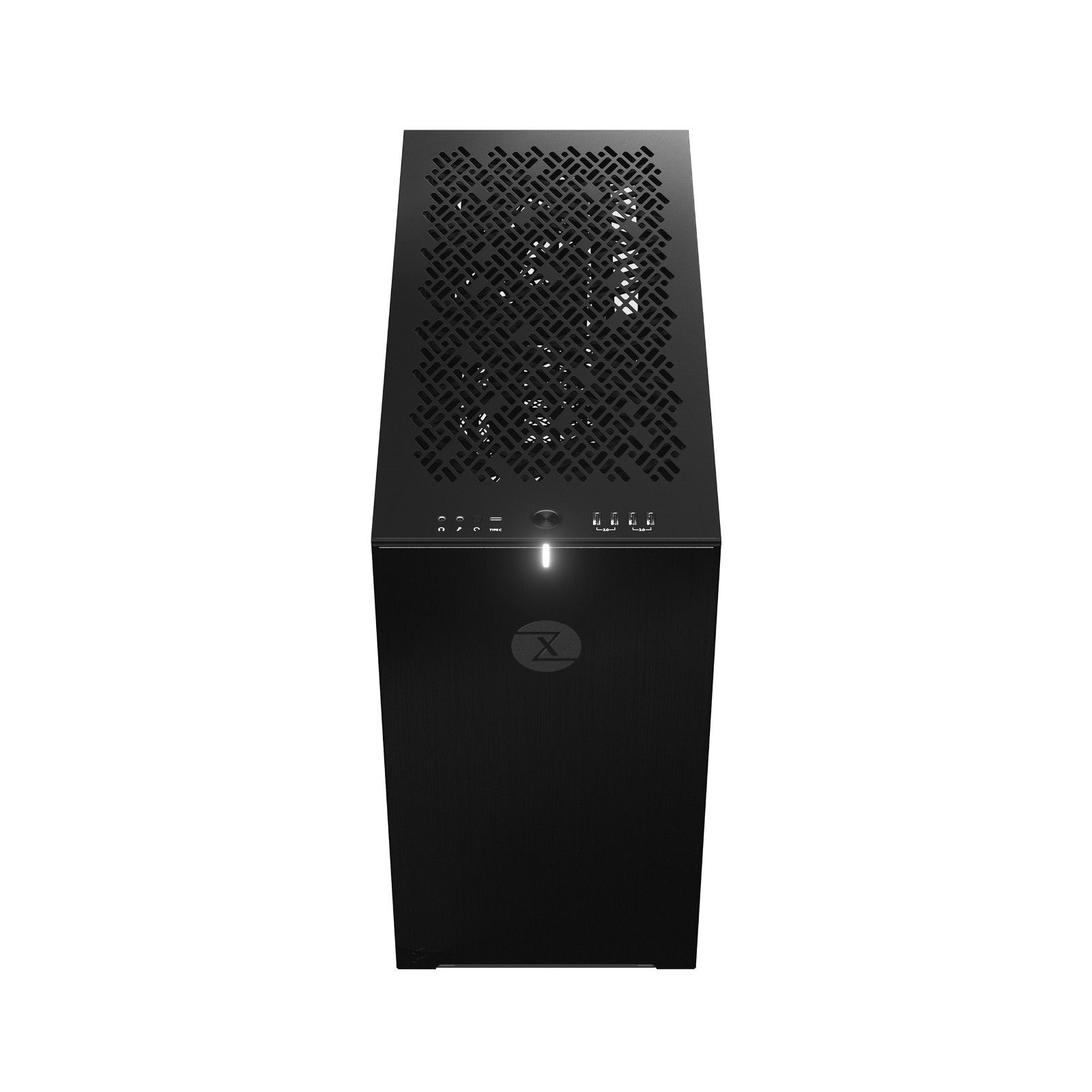

    »Muted« case design: Besides providing highly unobtrusive noise emissions, TUXEDO PRO aims for a muted and professional case design with elegant accents like its brushed aluminum front panel and - if you wish so - a tinted tempered glass side panel.

    Noise-Damped Aluminum-Steel Case
    547 x 240 x 475 mm

    Up to Intel Core i9-14900K
    24 Cores | 32 Threads | 125 W TDP

    High-End Graphics by NVIDIA or AMD
    GeForce RTX 4000 | AMD Radeon RX 7000


    Up to 4x 48 GB DDR5 RAM
    Up to 7 storage drives

    For maximum computing power, the TUXEDO PRO XL can be ordered with a variety of processors up to the high-end CPU Intel Core i9-14900K and graphics cards up to the NVIDIA GeForce RTX 4090 / AMD Radeon RX 7900 XT, flanked by up to a whopping 192 GB of RAM and up to 7x mass storage modules.

    Icon Gehäuse

    Spacious Tower PC in Unobtrusive Workstation Design

    547 x 240 x 475 mm

    Icon Kühlung

    Exceptionally Quiet Cooling for Work & Play

    Noise-damped steel panels | CPU liquid cooling | 5x chassis fans in total

    Icon CPU

    Up to

    Intel Core i9-14900K

    24 Cores | 32 Threads | 125 Watts TDP

    Icon GPU

    Optional

    High-End Graphics by AMD or NVIDIA

    GeForce RTX vs Radeon RX

    Icon Speicher

    Up to

    192 GB RAM

    4x 48 GB DDR5 DIMM

    Icon Anschlüsse

    Great Ports Selection

    HDMI 2.1 | DisplayPort 1.4 | 10x USB-A | 2x USB-C

    Icon SSD/HDD

    MASS Storage

    4x M.2 SSD | 2x 2.5'' | 1x 2.5'' / 3.5''



    Technical Details

    Chassis

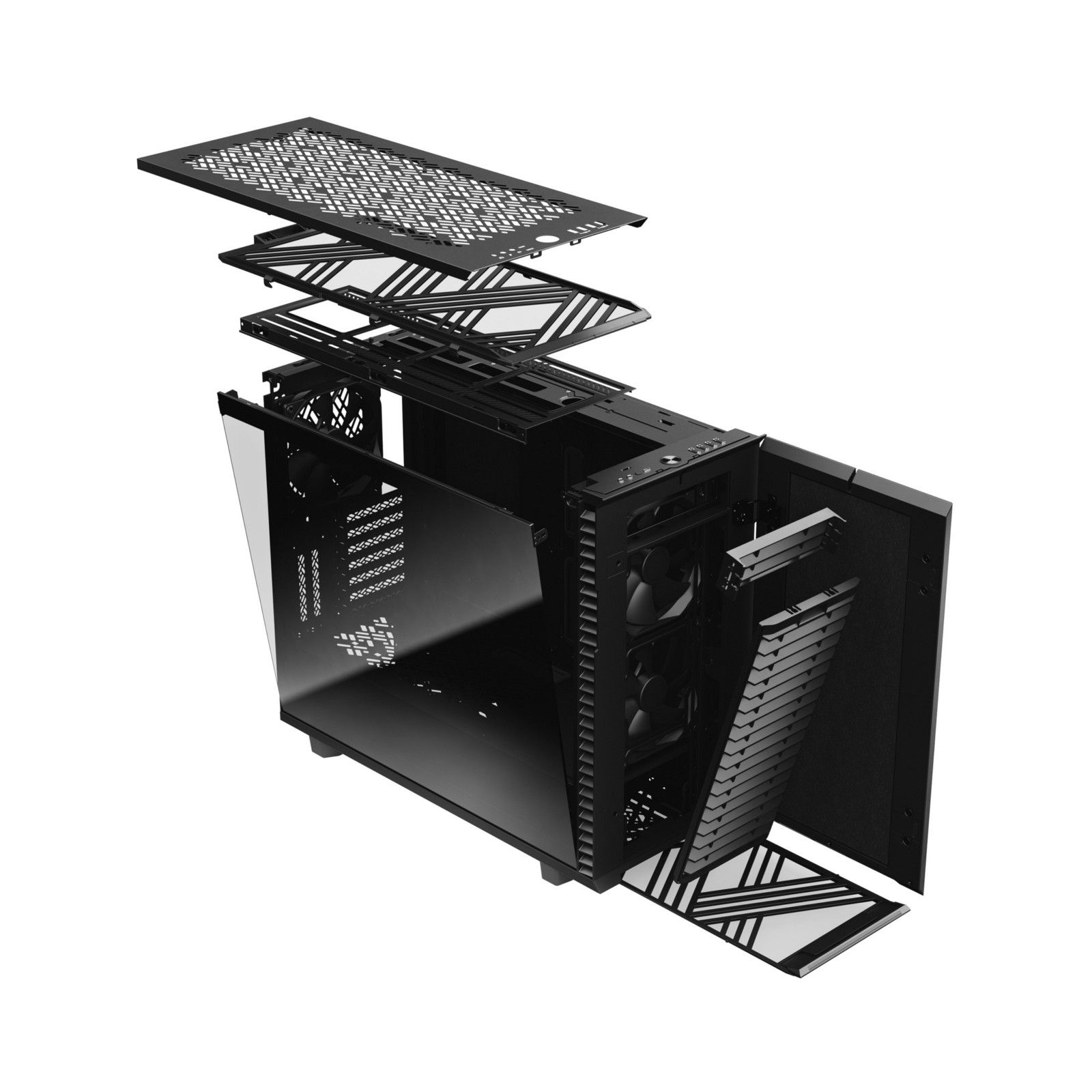

    Robust aluminum-steel housing with noise damping in a subtle matt black workstation design.

    Dimensions: 547 x 240 x 475 mm | Net weight: 13.5 kg

    Power supply:
    Manufacturer: Seasonic / Xilence (Bequiet)
    Certification: 85+ Gold
    Voltage: 100-240V
    Power output: Individually depending on hardware equipment
    Power usage: depending on hardware and system load
    Noise level: Temperature controlled 14cm Ultra-Silent fan



    Fan noise / Cooling / Ventilation
    Temperature controlled silent fan!
    At low system workload/stress there is less heat emerging. The cooling system fans have to spin accordingly fast or slow or even turn themselves off completely. But the device doesn't produce any disturbing noises even at full load, no high frequency sounds or clatter, just air swooshing.



    Ports

    Front:
    - 1x USB-C 3.2 Gen 1
    - 2x USB-A 3.0
    - 2x USB-A 2.0
    - Audio & microphone

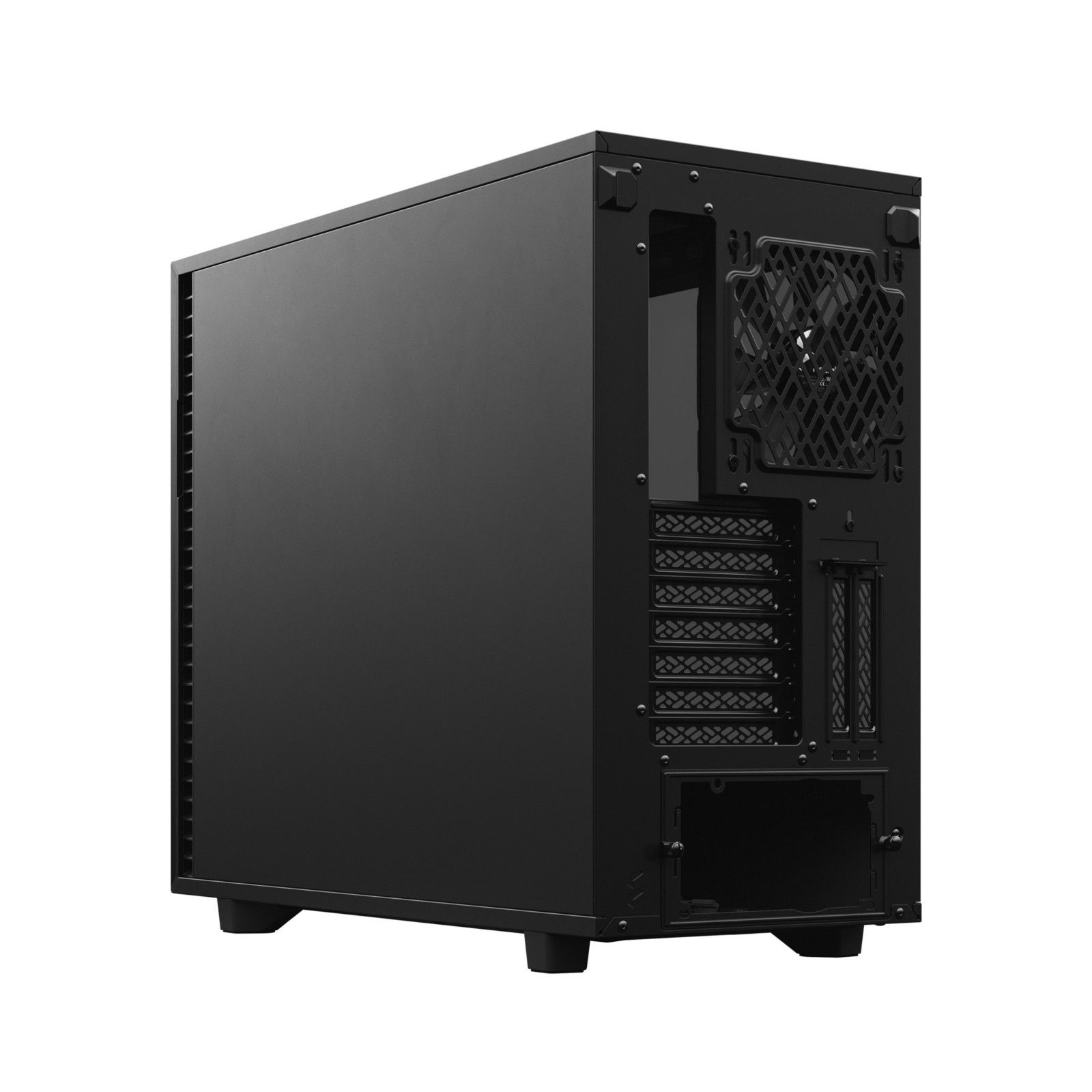

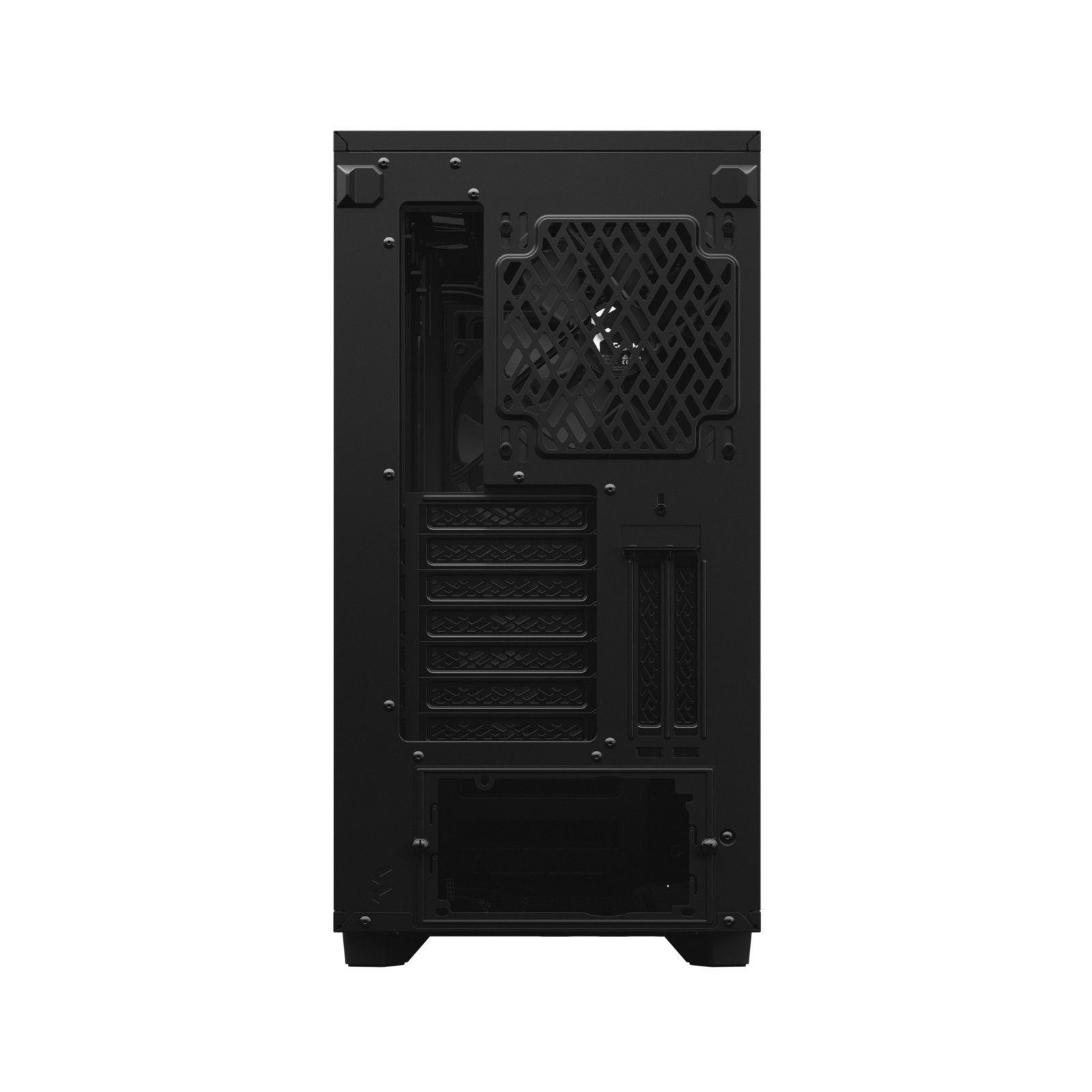

    Back:
    Please refer to "Mainboard" section



    Main processor

    Energy efficient powersaving processors of the "T" series (TDP: 35 Watts)
    High-performance processors for gaming and content creation (TDP: 65 Watts)
    High-end processors with max performance and unlocked for overclocking of the "K" series (TDP: 125 Watt)



    Graphics card

    The power efficient graphics chip integrated in the processor can be supersedet by a more powerful NVIDIA GeForce or AMD Radeon RX graphics card.
    For details, please have a look at the configurator.



    Memory

    Type: DDR5 DIMM
    Manufacturer and speed see configurator
    Default and maximum see configurator
    Dual channel mode (with 2 modules)



    Mass storage (SSD / HDD)

    See "Storage connectors" under "Mainboard



    Mainboard

    Mainboard:
    Manufacturer & Chipsatz: Intel Z790 Chipset
    256 Mbit AMI UEFI BIOS
    Formfaktor: ATX (30,5 x 24,4 cm)

    Network / Ethernet / LAN
    - 1x LAN:
        - 1x 2.5 Gigabit Intel (2.5 Gbit / 1 Gbit / 100 Mbit)
        - Supports Wake-On-LAN
        - Supports PXE

    Wireless LAN / WLAN / WIFI
    Qualcomm NCM865
    - Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps
    - Supports 802.11 a/b/g/n/ac/ax/be
    - Supports Bluetooth 5.4

    Sound / Audio:
    7.1 CH HD Audio (Realtek ALC4080 Codec)
    - High Definition Audio
    - 2/4/5.1/7.1-channel

    Rear Mainboard connectors:
    1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    1x DisplayPort 1.4
    1x HDMI Port 2.1 (4K@60Hz) with HDR
    2x USB-A USB 2.0
    2x USB-A USB 3.2 Gen1 5GBit/s (backward compatible)
    3x USB-A USB 3.2 Gen2 10GBit/s (backward compatible)
    1x USB-C USB 3.2 Gen2x2 20GBit/s (backward compatible)
    1x Flash BIOS Button
    2x Antenna connectors
    1x Optical S/PDIF out
    5x Audio: 1x Line in; 1x Front Speaker/Line-Out; 1x Rear Speaker; 1x Subwoofer; 1x microphone

    TUXEDO Intel Z790 Mainboard

    Mainboard connectors internally (partially populated by your configuration):
    4x DDR5 DIMM-Sockel
    1x PCI Express 5.0 x16 Slot, running at x16
    1x PCI Express 4.0 x16 Slot, running at x4
    1x PCI Express 3.0 x16 Slot, running at x1
    1x PCI Express 3.0 x1 Slot
    6x SATA 6Gb/s connector(s)
    4x M.2 slots
    1x CPU Fan
    1x Pump Fan
    6x System Fan
    2x Front Panel
    1x Front Audio
    1x TBT connector
    1x Tuning Controller connector
    3x Addressable V2 RGB LED connector
    1x RGB LED connector
    1x TPM pin header (Support TPM 2.0)
    2x USB 2.0 ports
    2x USB 3.2 Gen1 Type A ports
    1x USB 3.2 Gen2 Type C port
    1x USB4 expansion card connector

    Storage connectors:

    1x M.2 Socket (M2_1)
    - Supports M Key type 2242/2260/2280/22110 M.2 PCI Express module up to Gen4 x4
    1x M.2 Socket (M2_2)
    - Supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4 x4
    1x M.2 Socket (M2_3)
    - Supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4 x4 & SATA 6Gb/s
    1x M.2 Socket (M2_4)
    - Supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4 x4 & SATA 6Gb/s
    6x SATA 6Gb/s







    System & Service

    Operating systems

    We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:





    Encrypted Installation

    On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course even after expiration of your warranty period we're offering replacement parts and service for many years!



    For warranty cases we'll provide you with free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO preinstalled & configured
    1x power cord
    1x First steps manual incl. short technical manual
    1x Mainboard manual
    1x WebFAI USB drive (www.webfai.de) for Linux recovery
