    Shhh! Extraordinarily Quiet High-Performance PC

    TUXEDO PRO M - Gen1 - Intel



    Great performance. Low noise. TUXEDO PRO is your powerful and exceptionally quiet, noise-damped Linux workstation PC for an undisturbed working and immersive gaming experience.

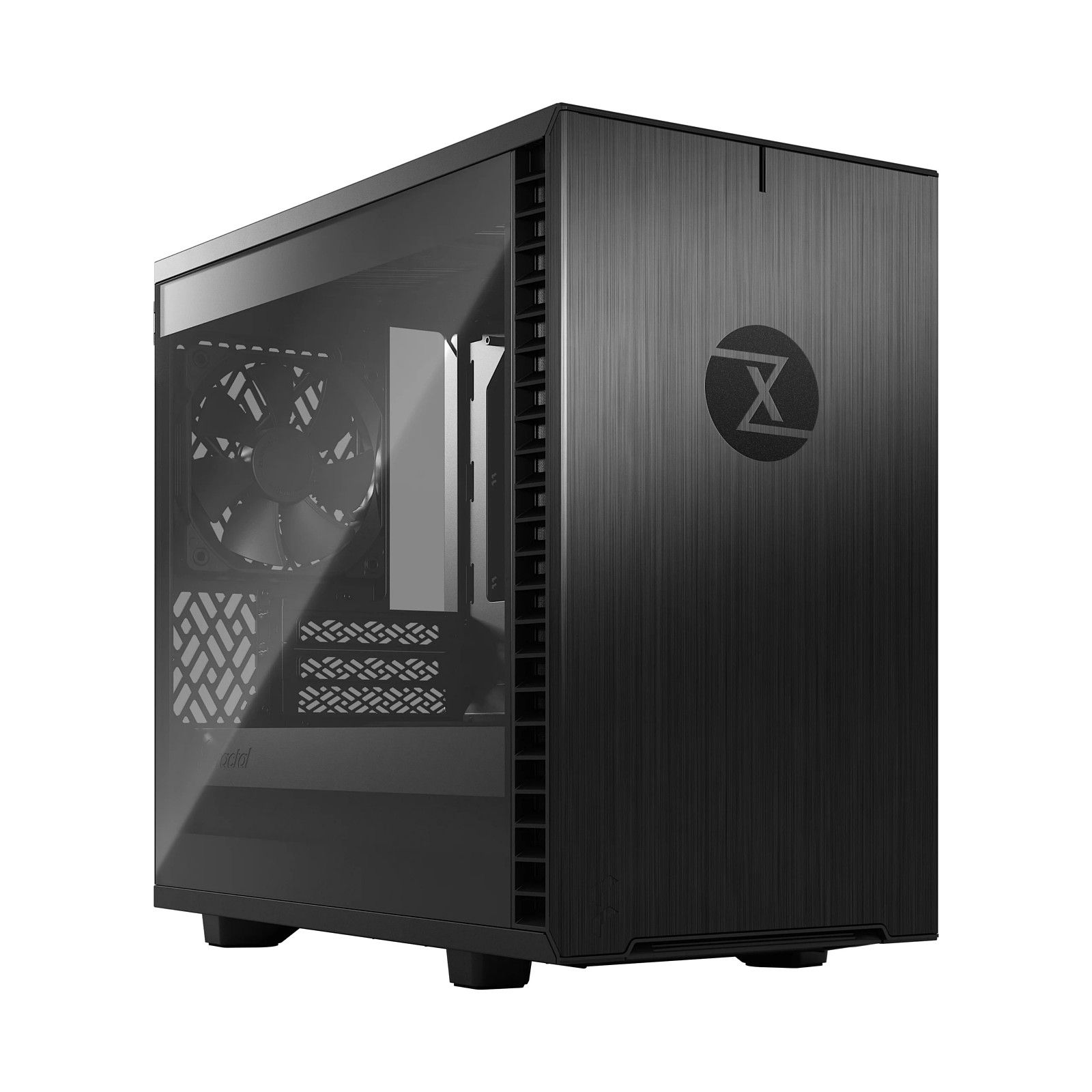

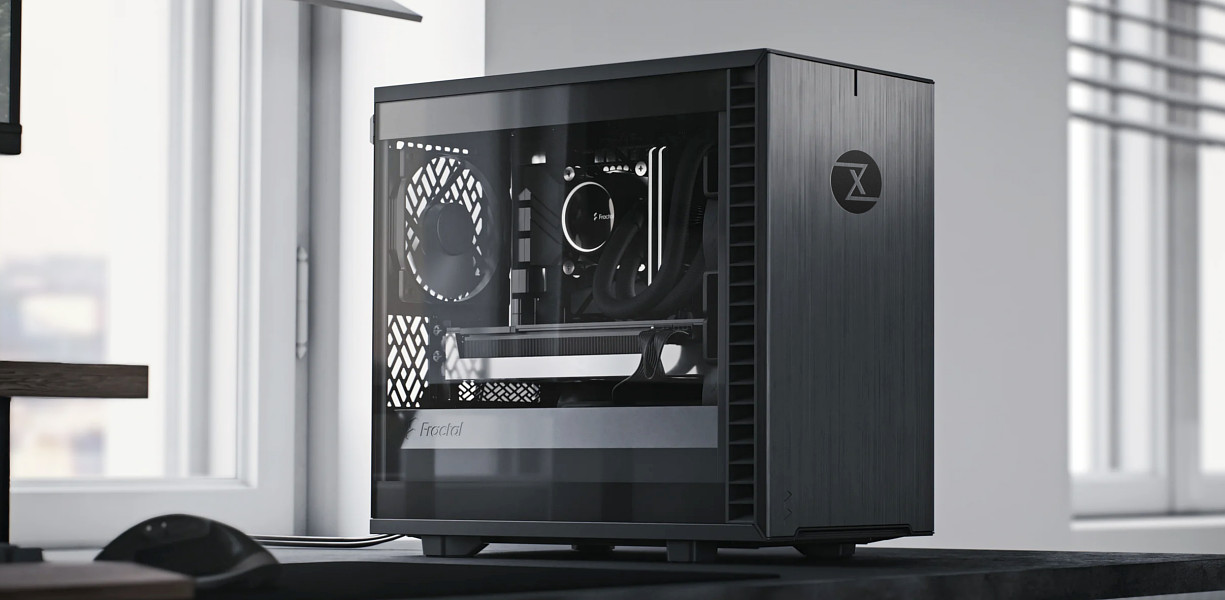

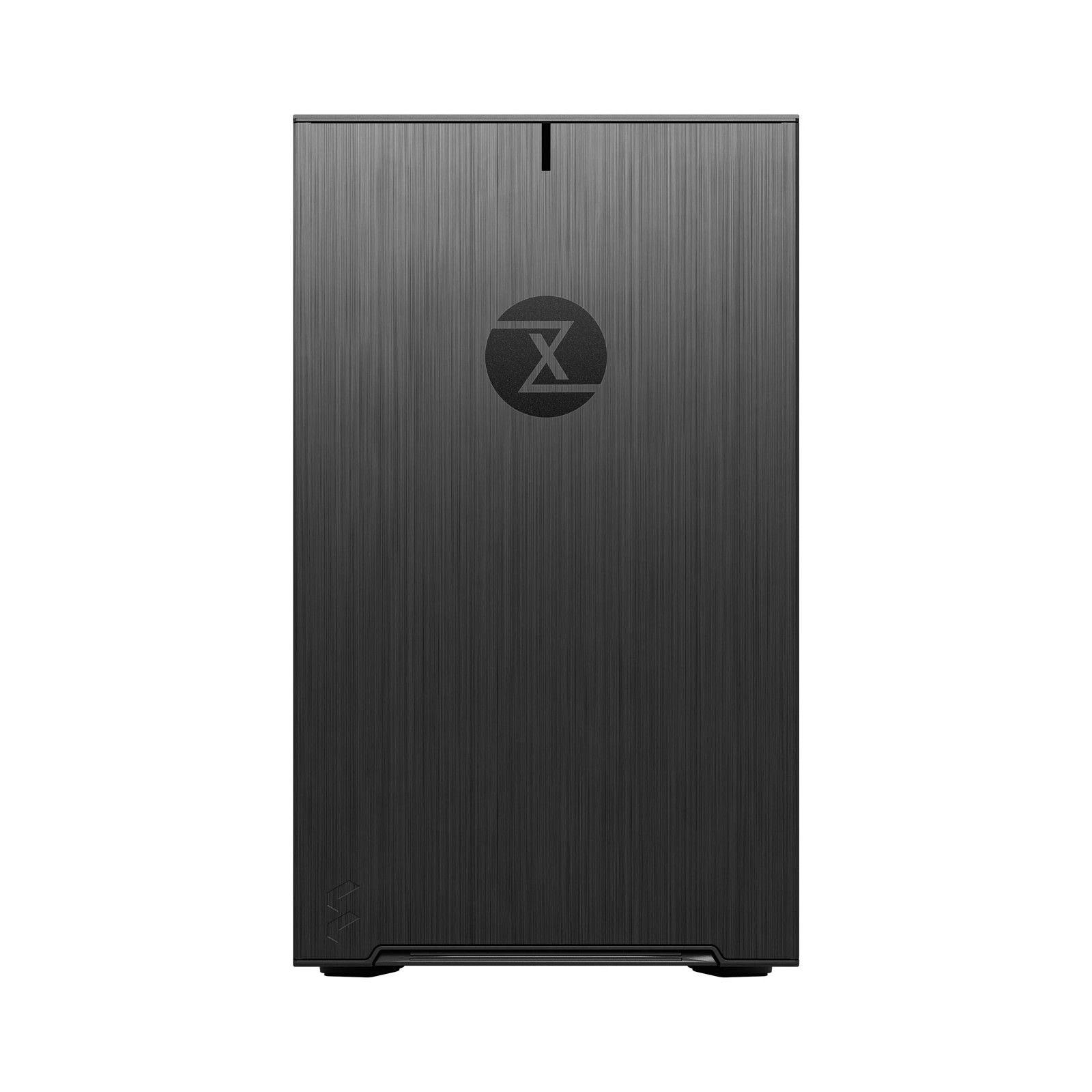

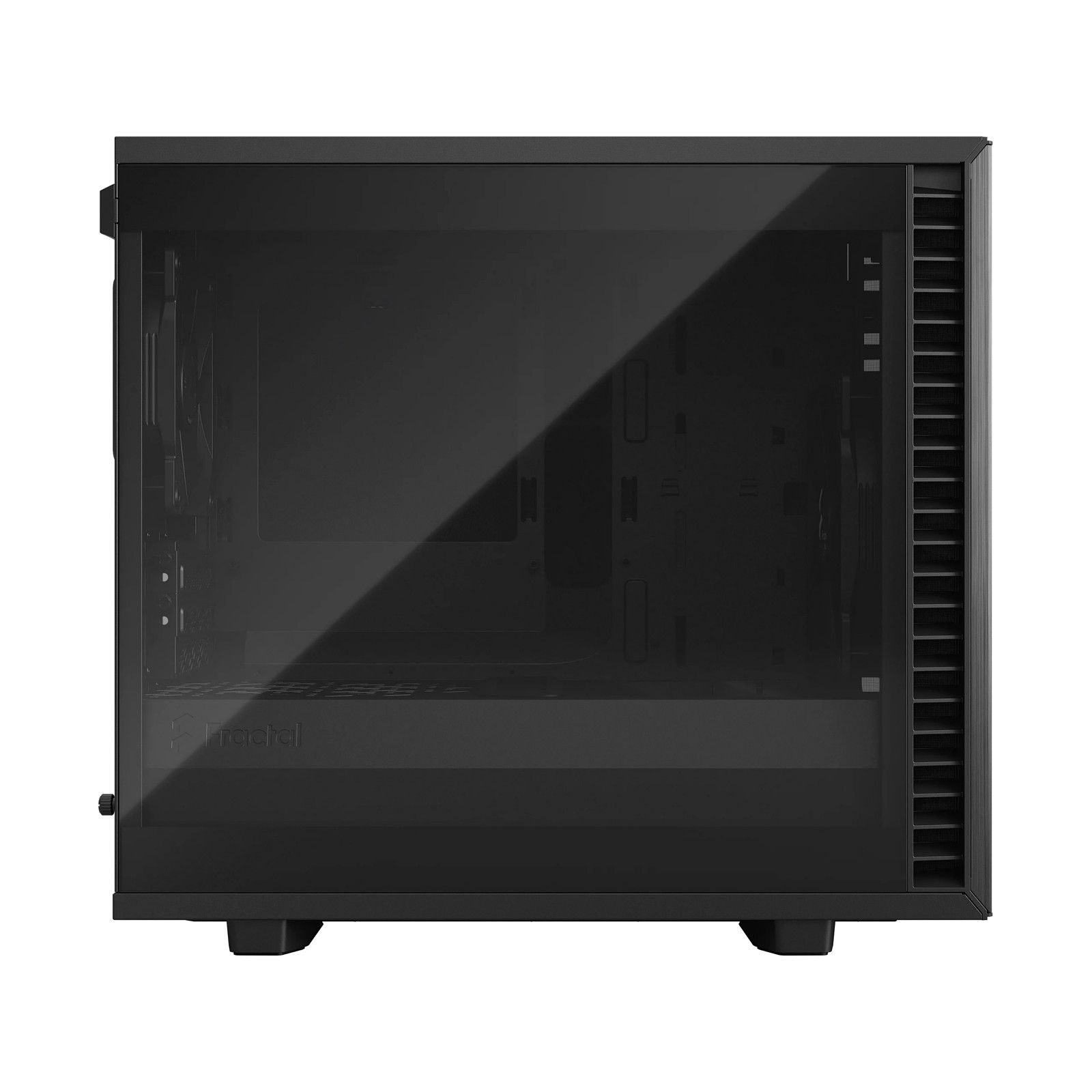

    »Muted« case design: Besides providing highly unobtrusive noise emissions, TUXEDO PRO aims for a muted and professional case design with elegant accents like its brushed aluminum front panel and - if you wish so - a tinted tempered glass side panel.

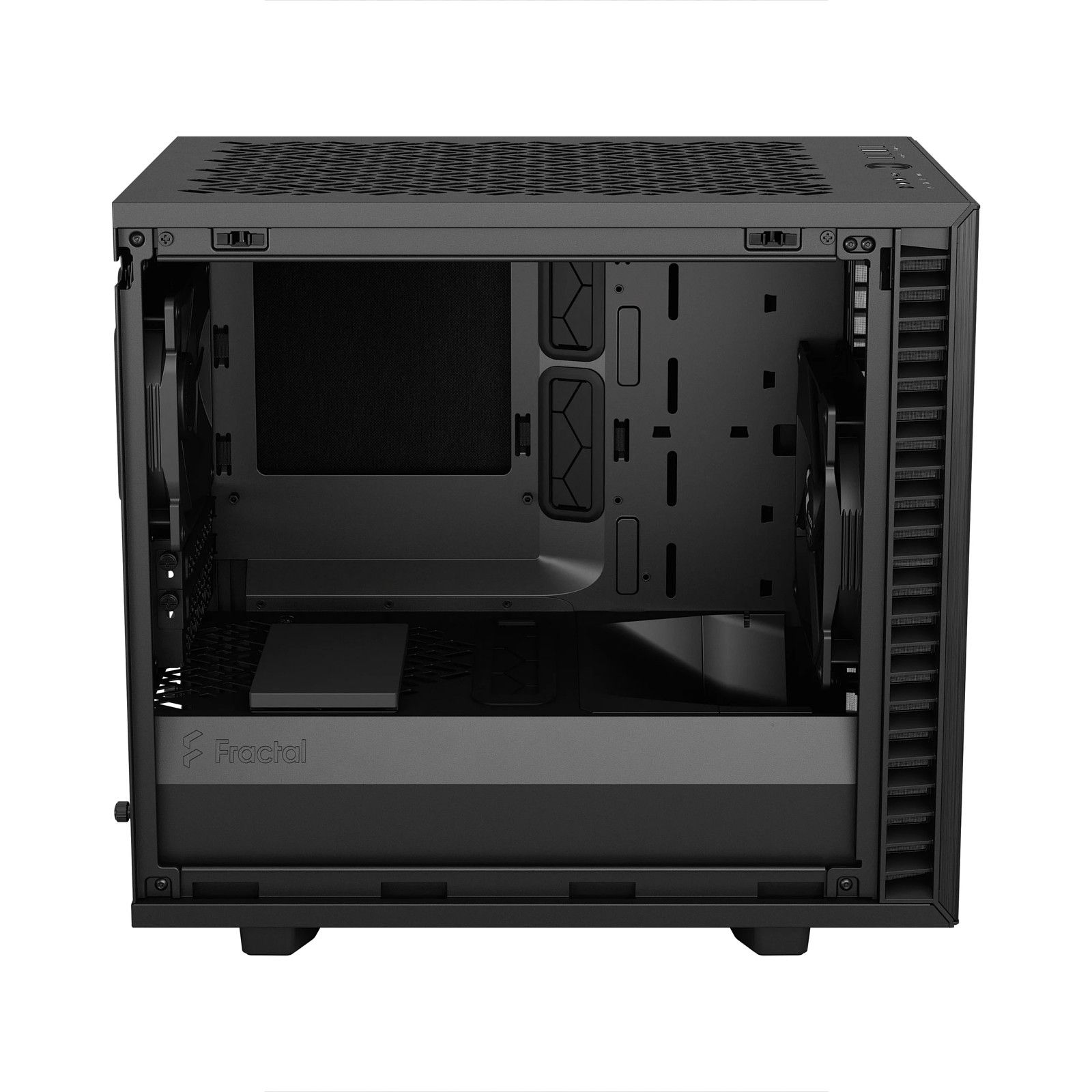

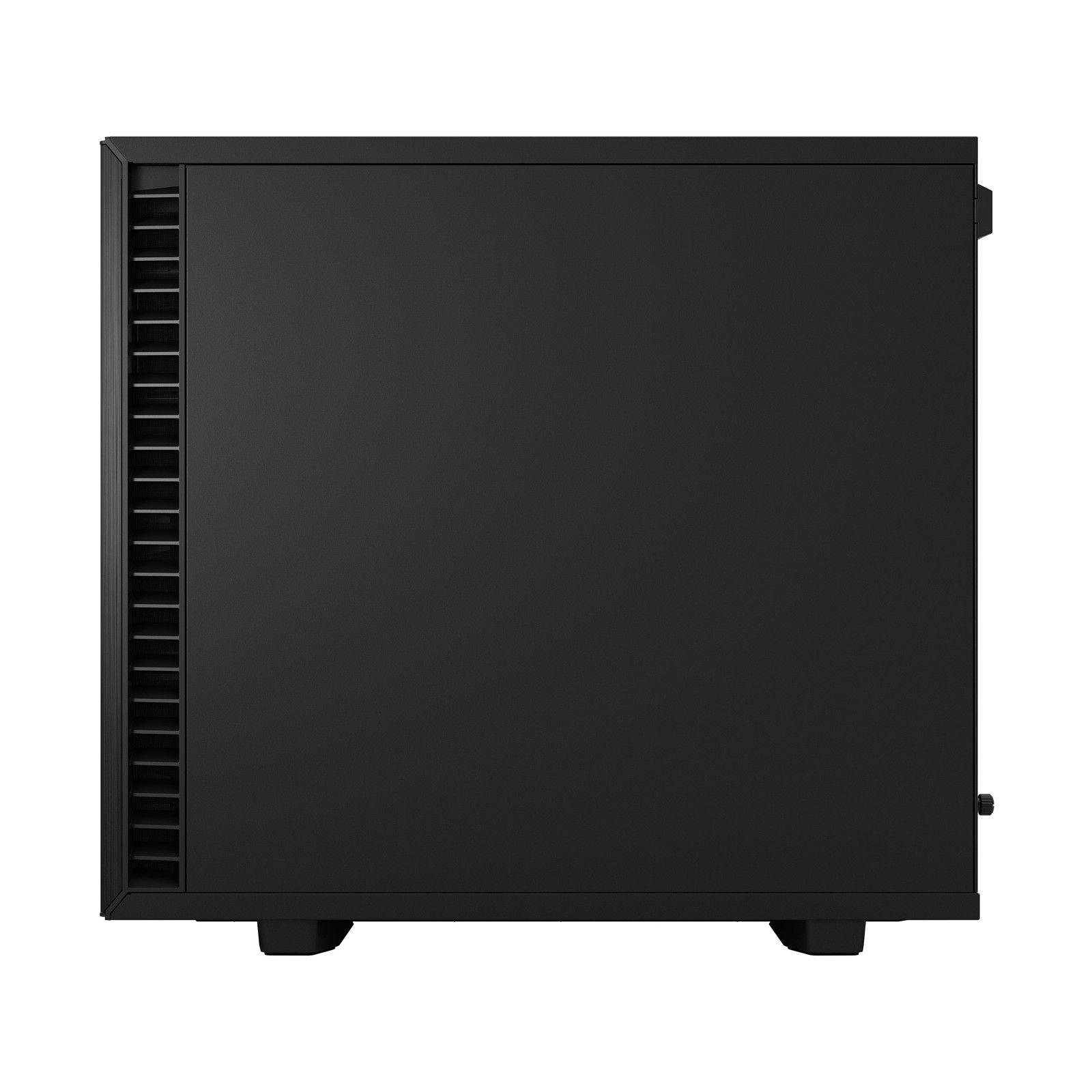

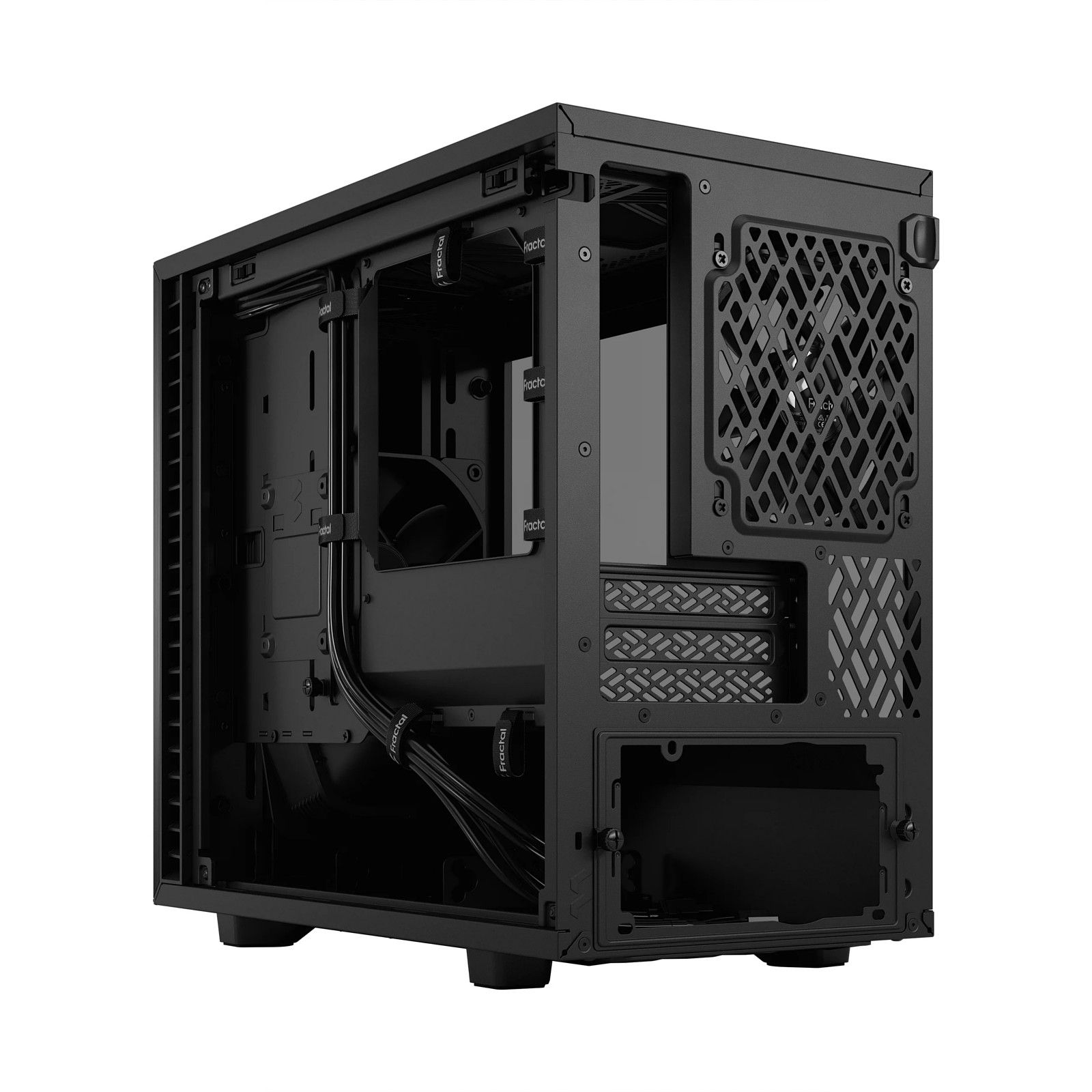

    Noise-Damped Aluminum-Steel Case
    399 x 205 x 361 mm | Net weight: 7.2 kg

    Up to Intel Core i9-14900K
    24 Cores | 32 Threads | 125 W TDP

    High-Performance Graphics for Work & Play
    NVIDIA GeForce RTX vs AMD Radeon RX


    Up to 64 GB RAM
    SSD/HDD: 3x 2.5'' | 1x 3.5''

    For plenty of computing power, the TUXEDO PRO M can be ordered with a variety of processors up to the high-end model Intel Core i9-14900K and graphics cards up to the NVIDIA GeForce RTX 4070 SUPER / AMD Radeon RX 7700 XT, flanked by up to 64 GB of RAM and up to 8x mass storage modules (2x M.2, 3x 2.5'', 1x 3.5'' SSD/HDD).

    Icon Gehäuse

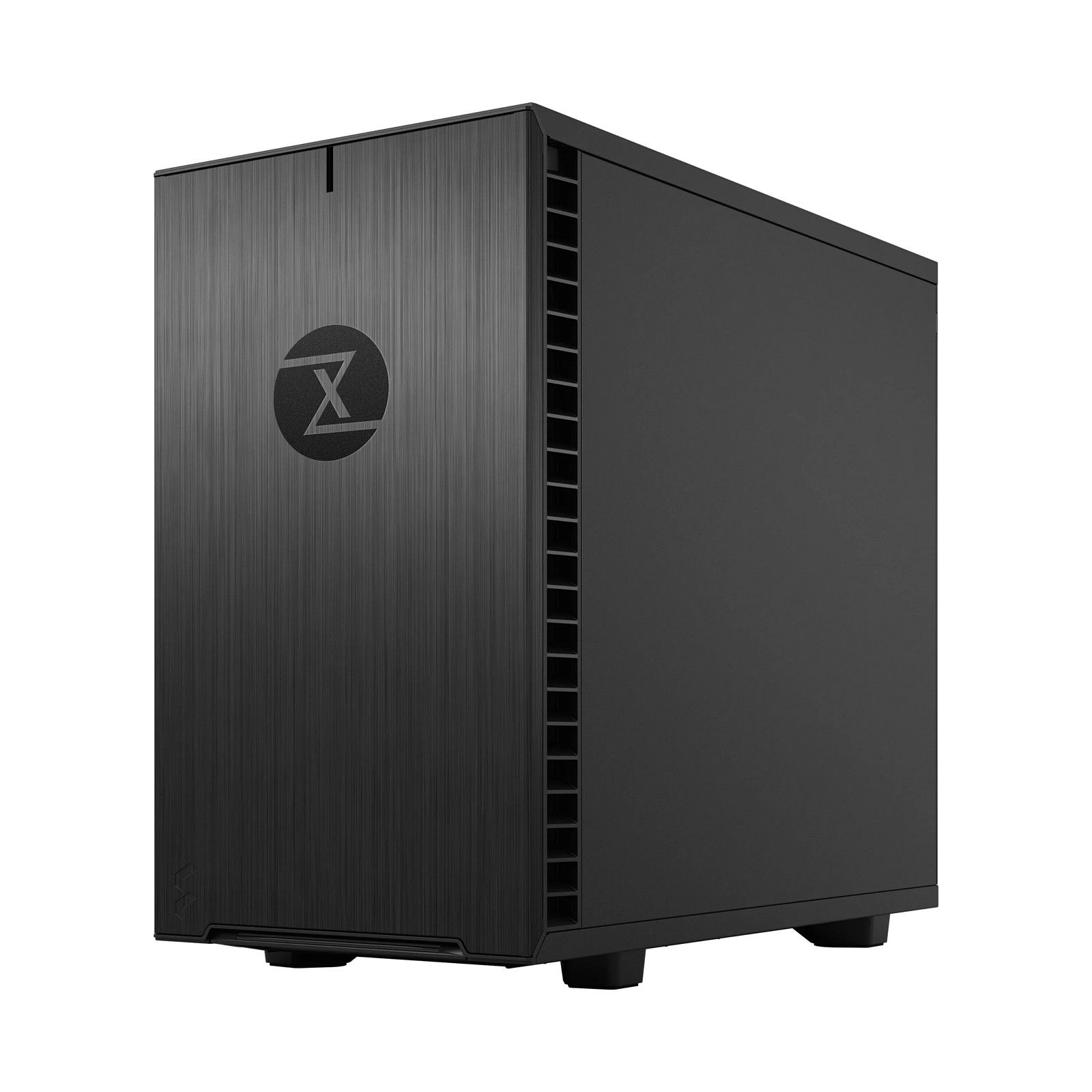

    Robust Metal Case in Unobtrusive Workstation Design

    399 x 205 x 361 mm

    Icon Kühlung

    Super Quiet Cooling for Work & Play

    Noise-damped steel panels | CPU liquid cooling | Up to 5x 120 mm fans

    Icon CPU

    Up to

    Intel Core i9-14900K

    24 Cores | 32 Threads | 125 Watts TDP

    Icon GPU

    Optional

    NVIDIA/AMD High-Performance Graphics

    GeForce RTX vs Radeon RX

    Icon Speicher

    Up to

    64 GB RAM

    2x 32 GB DIMM

    Icon Anschlüsse

    Great Ports Selection

    HDMI 2.1 | DisplayPort 1.4 | 10x USB-A | 2x USB-C

    Icon SSD/HDD

    MASS Storage

    2x M.2 SSD | 3x 2,5'' | 1x 3,5''



    Technical Details

    Chassis

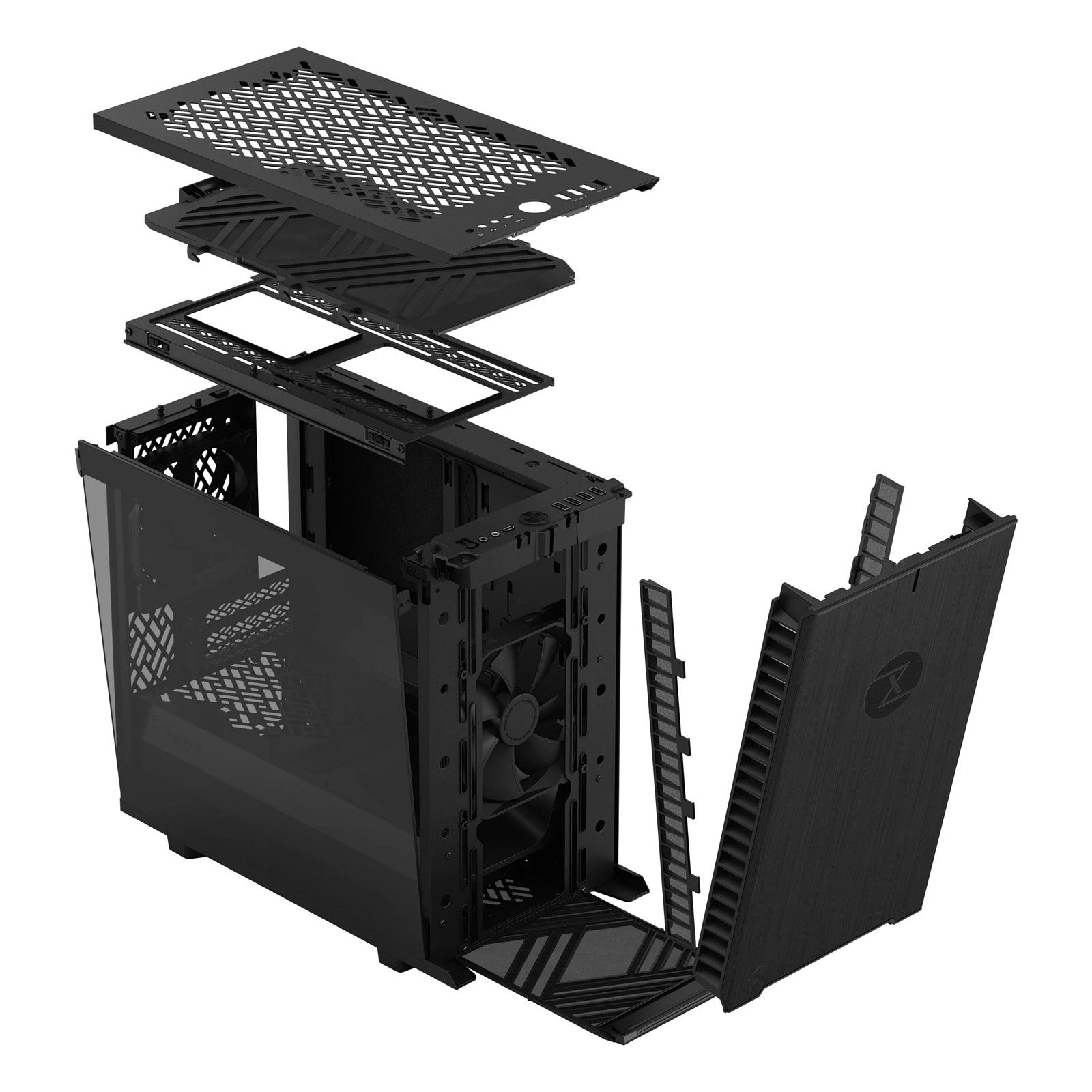

    Robust aluminum-steel housing with noise damping in a subtle matt black workstation design.

    Dimensions: 399 x 205 x 361 mm | Net weight: 7.2 kg

    Power supply:
    Manufacturer: Seasonic / Xilence (Bequiet)
    Certification: 85+ Gold
    Voltage: 100-240V
    Power output: Individually depending on hardware equipment
    Power usage: depending on hardware and system load
    Noise level: Temperature controlled 14cm Ultra-Silent fan



    Cooling solution:
    Front: CPU liquid cooling radiator (2x 120mm)
    Top: 2x 120 or 1x 140 slim fan (max 15 mm)
    Back: 1x 120 mm (1x Dynamic X2 GP-12 included)
    Bottom: 1x 120 mm (without 3,5''-HDD tray)

    Noise growth / Cooling / Ventilation / Fan
    Temperature controlled silent fan!
    At low system workload/stress there is less heat emerging. The cooling system fans have to spin accordingly fast or slow or even turn themselves off completely. But the device doesn't produce any disturbing noises even at full load, no high frequency sounds or clatter, just air swooshing.

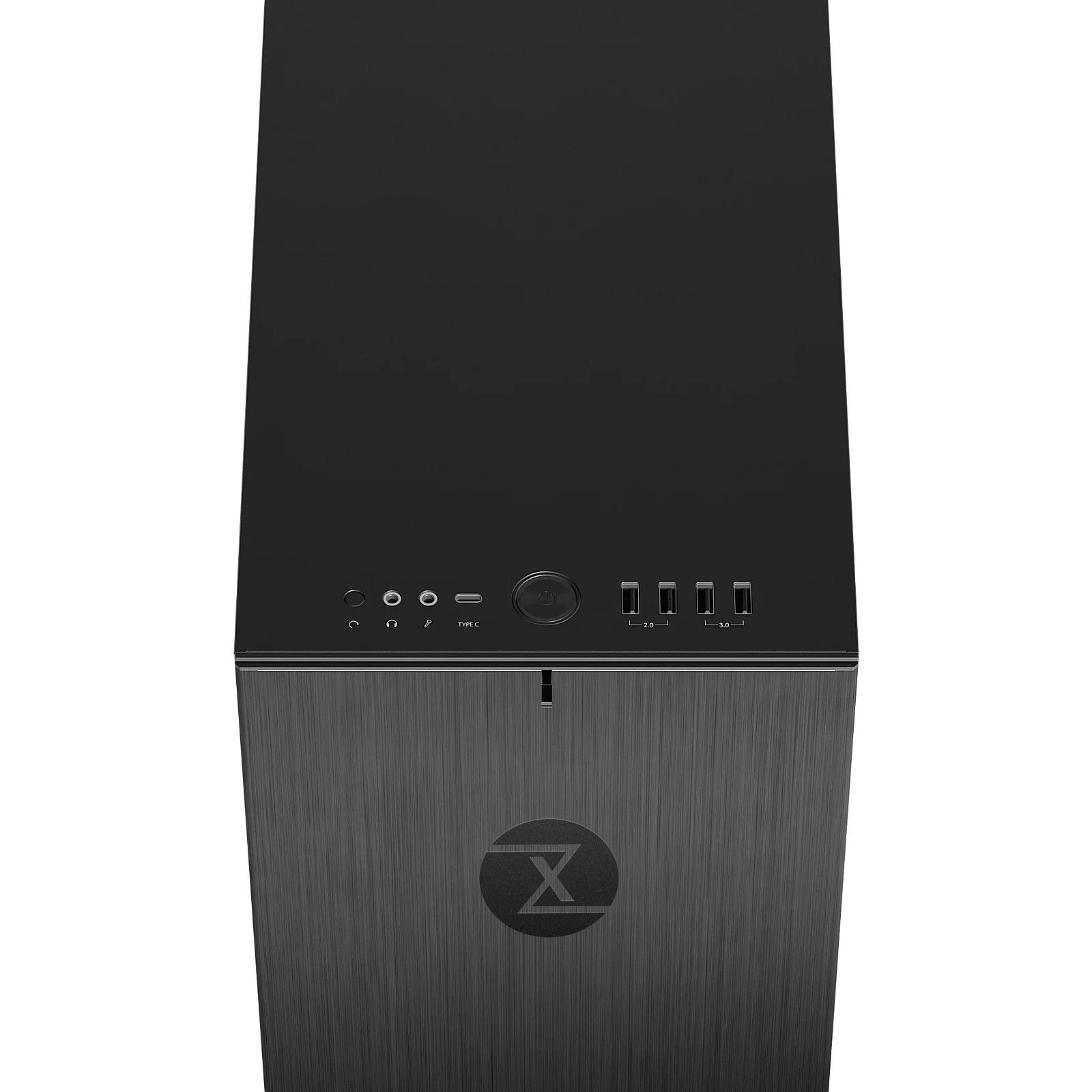

    Ports

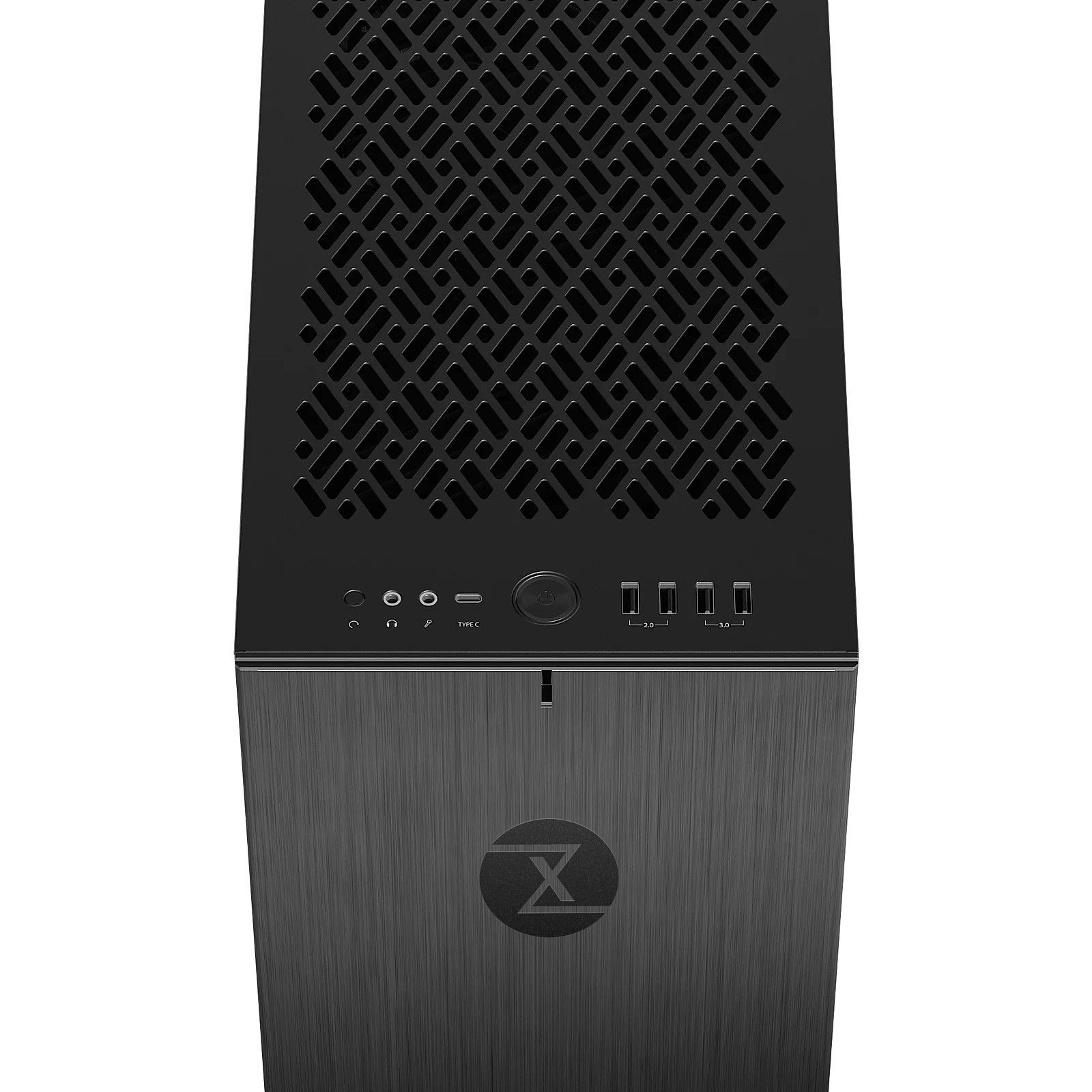

    Front:
    - 1x USB-C 3.2 Gen 1
    - 2x USB-A 3.0
    - 2x USB-A 2.0
    - Audio & microphone

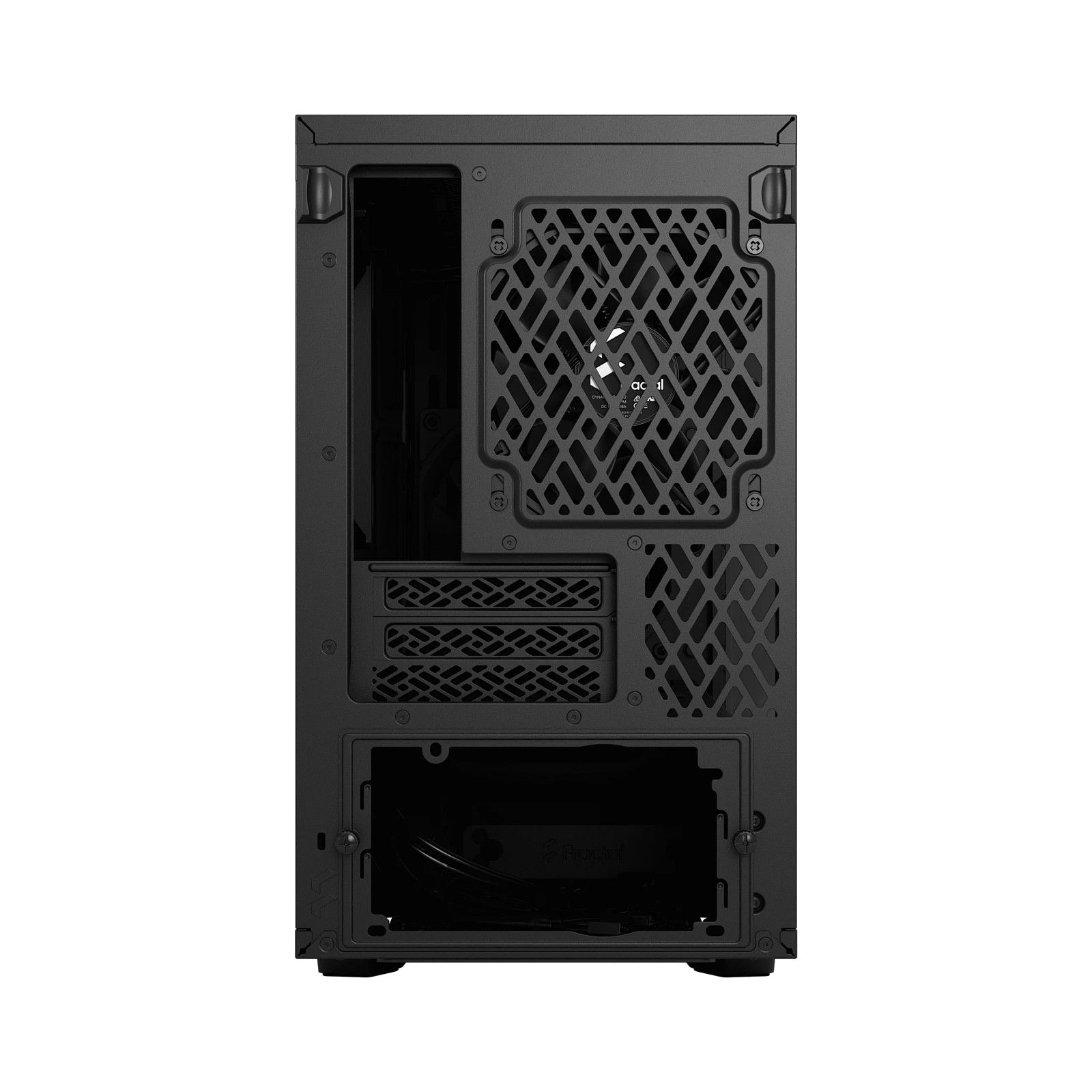

    Back:
    Please refer to "Mainboard" section



    Main processor

    Energy efficient powersaving processors of the "T" series (TDP: 35 Watts)
    High-performance processors for gaming and content creation (TDP: 65 Watts)
    High-end processors with max performance and unlocked for overclocking of the "K" series (TDP: 125 Watt)



    Graphics card

    The power efficient graphics chip integrated in the processor can be supersedet by a more powerful NVIDIA GeForce or AMD Radeon RX graphics card.
    For details, please have a look at the configurator.



    Memory

    Type: DDR4 DIMM
    Manufacturer and speed see configurator
    Default and maximum see configurator
    Dual channel mode (with 2 modules)



    Mass storage (SSD / HDD)

    See "Storage connectors" under "Mainboard



    Mainboard

    Mainboard:
    Manufacturer & Chipset: Intel H670 Chipset
    128 Mbit AMI UEFI BIOS
    Form Factor: Mini ITX (17 x 17 cm)

    Network / Ethernet / LAN
    2x LAN:
    - 1x 1.0 Gigabit Intel I219V Ethernet (10/100/1000 Mb/s)
    - 1x 2.5 Gigabit Realtek RTL8125BG Ethernet (10/100/1000/2500 Mb/s)
    - Supports Wake-On-LAN
    - Supports PXE, uvm.

    Wireless LAN / WLAN / WIFI
    Intel Wi-Fi 6 AX200 Series
    - Supports IEEE 802.11 a/b/g/n/ac/ax
    - Supports Dual-Band 2x2 160MHz with extended 6GHz band support
    - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
    - Supports Bluetooth + High speed class II
    - Supports MU-MIMO

    Sound / Audio:
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    - Supports Surge Protection
    - Nahimic Audio

    Rear Mainboard connectors:
    2 x RJ-45 LAN Port mit LED (ACT/LINK LED und SPEED LED)
    1 x DisplayPort 1.4
    1 x HDMI Port 2.1
    2 x USB 3.2 Gen2 10 Gb/s (backward compatible)
    1 x USB 3.2 Gen2x2 Type-C 20 Gb/s (backward compatible)
    4 x USB-A USB 2.0
    1 x BIOS Flashback Button
    3 x Audio Anschlüsse: 1x Line in; 1x Front Speaker; 1x Microphon in
    2 x Antenna Connectors

    TUXEDO Intel H670 Mainboard

    Mainboard connectors internally (partially populated by your configuration):
    2 x DDR4 DIMM-Sockel (max. 64GB)
    1 x PCIe 5.0 x16
    1 x RGB LED Header
    1 x Addressable LED Header
    1 x CPU Fan Connector (4-pin)
    1 x Chassis Fan Connector (4-pin)
    1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
    1 x Front Panel Audio Connector
    1 x USB 2.0 Header
    1 x USB 3.2 Gen1 Header
    1 x Front Panel Type C USB 3.2 Gen1 Header
    4 x SATA3 6.0 Gb/s
    2 x M.2 slots


    Storage connectors:

    1 x M.2 Socket (M2_1)
    - Supports M Key type 2280 M.2 PCI Express module up to Gen4 x4
    1 x M.2 Socket (M2_2)
    - Supports M Key type 2280 M.2 PCI Express module up to Gen3 x4 & SATA 6Gb/s; Intel Optane Memory Ready
    4 x SATA 6Gb/s

    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    - Supports RAID 0 and RAID 1 for M.2 NVMe storage devices







    System & Service

    Operating systems

    We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:





    Encrypted Installation

    On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course even after expiration of your warranty period we're offering replacement parts and service for many years!



    For warranty cases we'll provide you with free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO preinstalled & configured
    1x power cord
    1x First steps manual incl. short technical manual
    1x Mainboard manual
    1x WebFAI USB drive (www.webfai.de) for Linux recovery
