    Tiny powerhouse

    TUXEDO Nano Pro - Gen13



    Mini Linux PC with great performance!

    The TUXEDO Nano Pro - Gen13 combines energy-saving yet powerful hardware with upgradable RAM and SSD storage options and an extensive ports selection in the smallest possible form factor 10x smaller than a typical shoe box!

    Whether as tiny media station for the living room, extremely space-saving work PC or ultra compact digital signage solution for public displays - the TUXEDO Nano Pro is incredibly versatile and, thanks to its full Linux compatibility, offers maximum security for private, professional or public use.

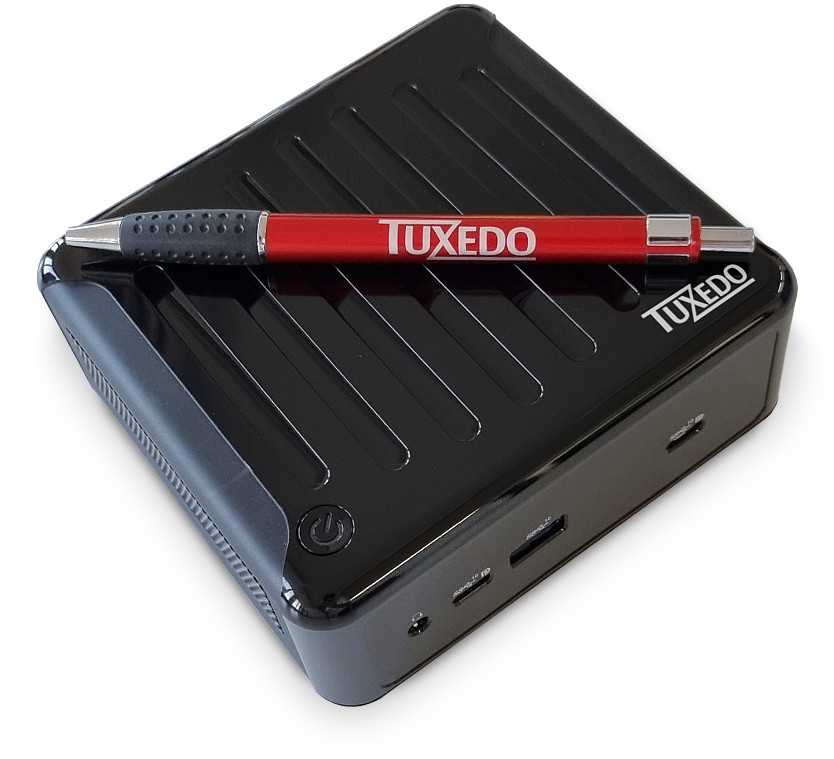

    Extremely small & light
    110 x 117.5 x 49 mm | 1 kg

    Up to AMD Ryzen 7 8840U
    AMD Radeon 780M

    Up to 4 displays
    2x HDMI | 2x DisplayPort

    Great connectivity
    5x USB | 2x RAM & SSD

    The heart of the Linux mini PC is AMD's highly efficient Ryzen 8000U series in the form of the Ryzen 5 8640U with 6 processor cores and 12 threads and the Ryzen 7 8840U with 8 cores and 16 threads.

    In combination with 2x upgradable SSD mass storage and RAM modules as well as an extensive connectivity including 5x USB, 2x LAN, HDMI and DisplayPort, the Nano Pro packs a fast work and multimedia PC in an almost palm-sized and 1 kg light enclosure.

    Icon Gehäuse

    10x smaller than a shoe box

    110 x 117.5 x 49 mm | 1 kg | 0,62 L

    Icon CPU

    AMD Ryzen 8000U: Power-saving yet fast

    Ryzen 5 8460U | Ryzen 7 8840U

    Icon GPU

    Up to

    AMD Radeon 780M

    12 GPU cores | 2700 MHz Graphics clock speed

    Icon Speicher

    Up to

    6 TB SSD | 96 GB RAM |

    2x SO-DIMM RAM | 2x M.2 SSD

    Icon Anschlüsse

    5x USB, 2x DisplayPort and 2x LAN

    2x HDMI 2.1 | 2x USB-C | up to 4 displays



    Technical Details

    Chassis

    Width: 110 mm; Depth: 117,5 mm; Height: 49 mm,
    Weight: ~ 1 kg (depending on the actual configuration)
    Material: Plastics
    Maintenance: After removing 4 screws from the base plate RAM and mass storage are easily accessible. The fan is located at the back of the motherboard.

    Power supplies:
    With AMD Ryzen 5 8640U:
    90W power supply (AC) | 19V/4.73A

    With
    AMD Ryzen 7 8840U:
    120W
    power supply (AC) | 19V/6,3A

    1x VESA mounting included (75x75mm and 100x100mm)



    Ports

    Front:
    2x USB-C 4 with DisplayPort 1.4a
    1x USB-A 3.2 Gen2
    1x 2-in-1-Audio (headphone + microphone)

    Rear:
    2x HDMI 2.1
    1x 1 Gigabit LAN (Realtek RTL8111H)
    1x 2.5 Gigabit LAN (Realtek RTL8125BG)
    2x USB-A 2.0
    1x DC-in
    1x Kensington Lock



    Main processor

    AMD Ryzen 5 8640U
    (max. 4.9 GHz Hexa-Core, 6 Cores / 12 Threads, 22 MB Cache (L2+L3), 42 W* TDP, AMD Ryzen AI)

    AMD Ryzen 7 8840U
    (max. 5.1 GHz Octa-Core, 8 Cores / 16 Threads, 24 MB Cache (L2+L3), 42 W* TDP, AMD Ryzen AI)


    * Two performance modes available in UEFI:
    Normal Mode (default): Max. 28 Watts (sPPT)  |  Max. 33 Watts (fPPT)
    Performance Mode: Max. 42 Watts (sPPT) | Max. 50 Watts (fPPT)


    Energy efficient CPU integrated graphics:

    AMD Ryzen 5 8640U
    AMD Radeon™ Graphics 760M | Max. Clock rates: 2600 MHz | GPU Cores: 8

    AMD Ryzen 7 8840U
    AMD Radeon™ Graphics 780M | Max. Clock rates: 2700 MHz | GPU Cores: 12


    It is possible to drive 4 displays at the same time.
    Max. Resolution (HDMI 2.1): 7680 x 4320 @60 Hz
    Max. Resolution (DisplayPort 1.4a): 4096 x 2160 @ 60 Hz

    All display ports are connected to the processor's iGPU.



    Memory

    DDR5 5600 MHz SO-DIMM | 2 sockets changable | Max. 96 GB | Dual Channel

    Please note that the AMD Radeon Graphics integrated in the processor (iGPU) utilize the main memory (RAM).
    Therefore, we recommend using two identical RAM modules (dual-channel) (e.g. 2x 8 GB instead of 1x 16 GB) for full graphics performance!



    Mass storage (SSD / HDD)

    1x M.2 (KEY M, 2242/2280) PCIe 4.0 x4
    1x M.2 (KEY M, 2242) PCIe 4.0 x4



    Communication / Network


    Wired LAN:
    1x 1 Gigabit LAN (Realtek RTL8111H)
    1x 2.5 Gigabit LAN (Realtek RTL8125BG)

    Wireless / WiFi:
    AMD RZ608 / Mediatek MT7921K::
    Interface: M.2 2230
    Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
    TriBand 2,4 / 5 / 6 GHz
    Communication Channels: 2x2
    Transfer rate: 300 Mbit/s (2.4GHz WLAN) / 1,2Gbps (5GHz WLAN)

    Bluetooth:
    Integrated in above AMD RZ08 / Mediatek MT7921K
    Version: Dual Mode Bluetooth 5.2



    Sound / Audio

    2-in-1-Audio (headphone + microphone)



    Security

    - Integrated Kensington Lock mounting
    - WiFi and Bluetooth can be deactivated directly via the BIOS
    - TPM can be deactivated directly via the BIOS
    - Secure Boot is available





    System & Service

    Operating systems

    We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:





    Encrypted Installation

    On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!



    For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    • 1x TUXEDO_OS preinstalled & configured
    • 1x VESA mount
    • 1x power supply
    • 1x German power cord
    • 1x WebFAI-USB-Drive
    • 1x Accompanying letter
    • 1x TUXEDO fan package
