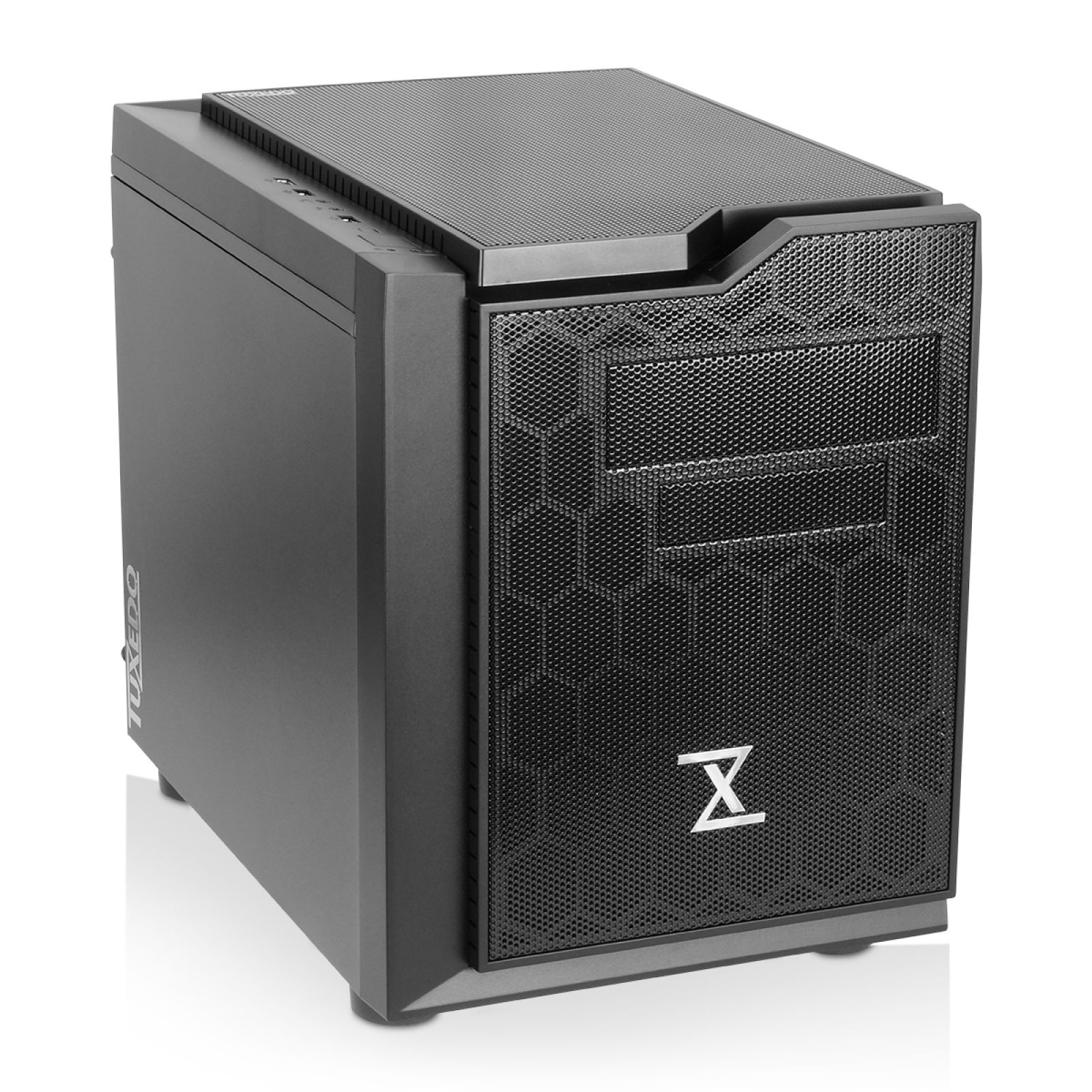

The completely new developed TUXEDO Cube can be anything you want! A stylish cube on or under your desk, a high-end gaming cube in the living room or "playroom" or just a small cube-shaped computer: D
Thanks to its enormous flexibility and small size, it is suitable for all current and future application scenarios.
The mATX motherboard can hold up to 128GB of memory, the largest NVIDIA GeForce RTX graphics card, as well as high-end processors. In the efficiently designed housing, not only quiet power supplies, extensive heat sinks but also several hard disks find a home easily.
In addition, the TUXEDO Cube AMD-Ryzen-Series are particularly efficient and inexpensive to purchase, so you get an economical and fully equipped Linux PC with branded hardware at a special price.
It is the ideal all-round PC because it can act as an inconspicuous office or Internet PC and can also be equipped with the most powerful hardware for games, image processing and video editing.
TUXEDO Cube is a PC with Micro ATX motherboard and tower. This means you'll get a compact computer that still offers full performance!
Of course, all TUXEDO devices are already fully functional in the standard configuration. We install, configure and update each computer in such a way that you only have to unpack, connect and switch it on after receipt.
Depending on the budget, you can also choose even better hardware, of course, all components are coordinated with each other!
When selecting the more expensive hardware, the following applies: The more the better. This means that if you decide on a more expensive processor, an expensive graphics card or more RAM, this component is also better than the cheaper one! In this way, you can adapt your desired PC individually to your budget, even without any in-depth knowledge.
The basis is provided by high quality housings with two front USB3.0 connectors, one front microphone and one front headphone jack and two mainboards, where we focus especially on high quality, speed and above all on high performance. value on durability. Customer satisfaction and a 24-month warranty on all parts of a Tuxedo are our top priority.
On the back you will find all necessary connections like USB-Type-C, USB 3.1 as well as USB 2.0, HDMI, DisplayPort and of course audio outputs and inputs.
Space, performance, multimedia capabilities and more are all at your fingertips thanks to multi-core processors, massive memory and multiple HDD and SSD drives.
For example, a combination of a medium-sized SSD paired with a large HDD is ideal. We install the operating system on the SSD and integrate the HDD as "data slaves". You've combined the extreme speed benefits of SSD hard drives with the low-cost storage space offered by regular HDDs.
If you're using performance-hungry and graphically demanding software, you can also choose a high-performance NVIDIA GeForce or AMD Radeongraphics card.
An optical drive for your DVDs or Blu-Rays completes the performance diversity of the TUXEDO Cube.

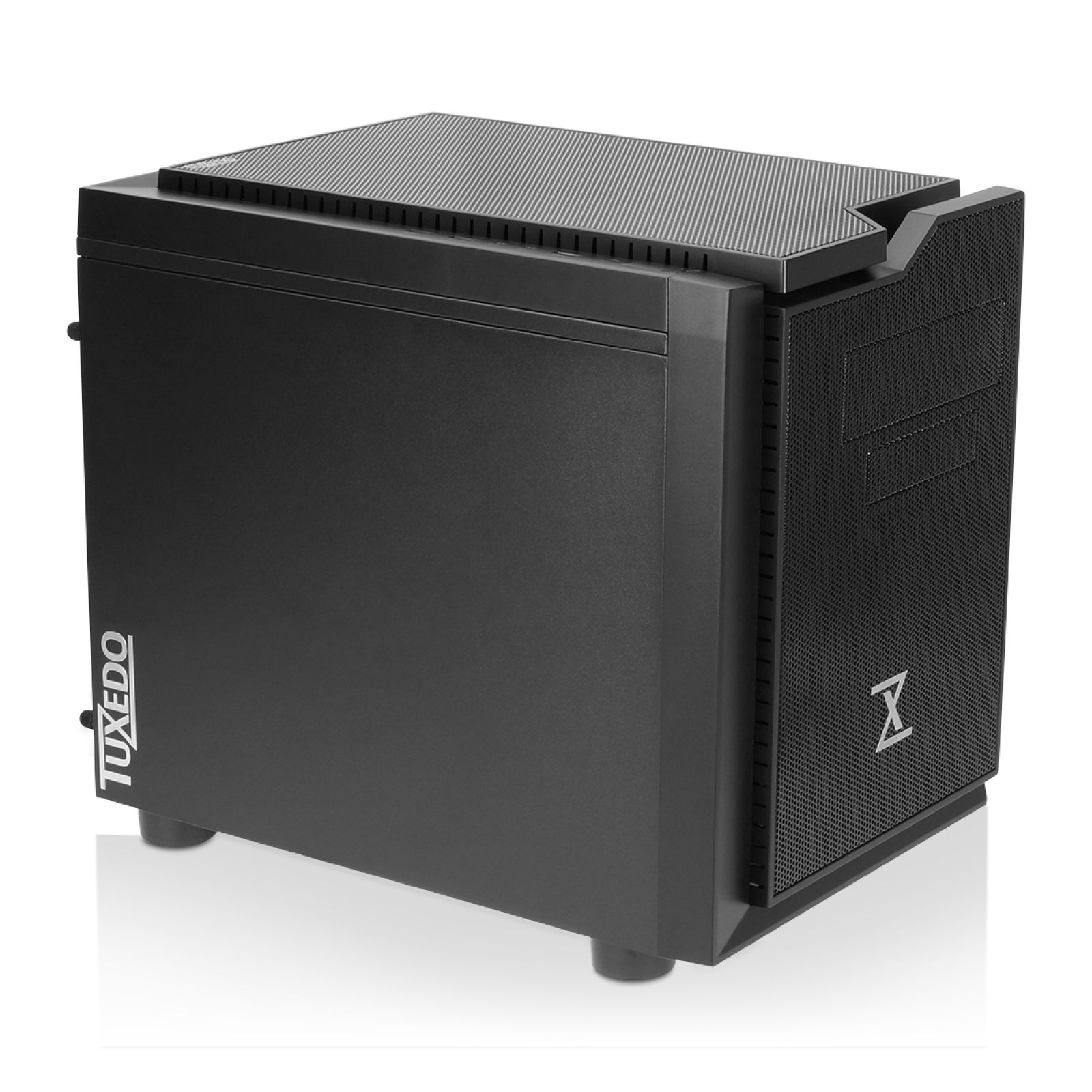

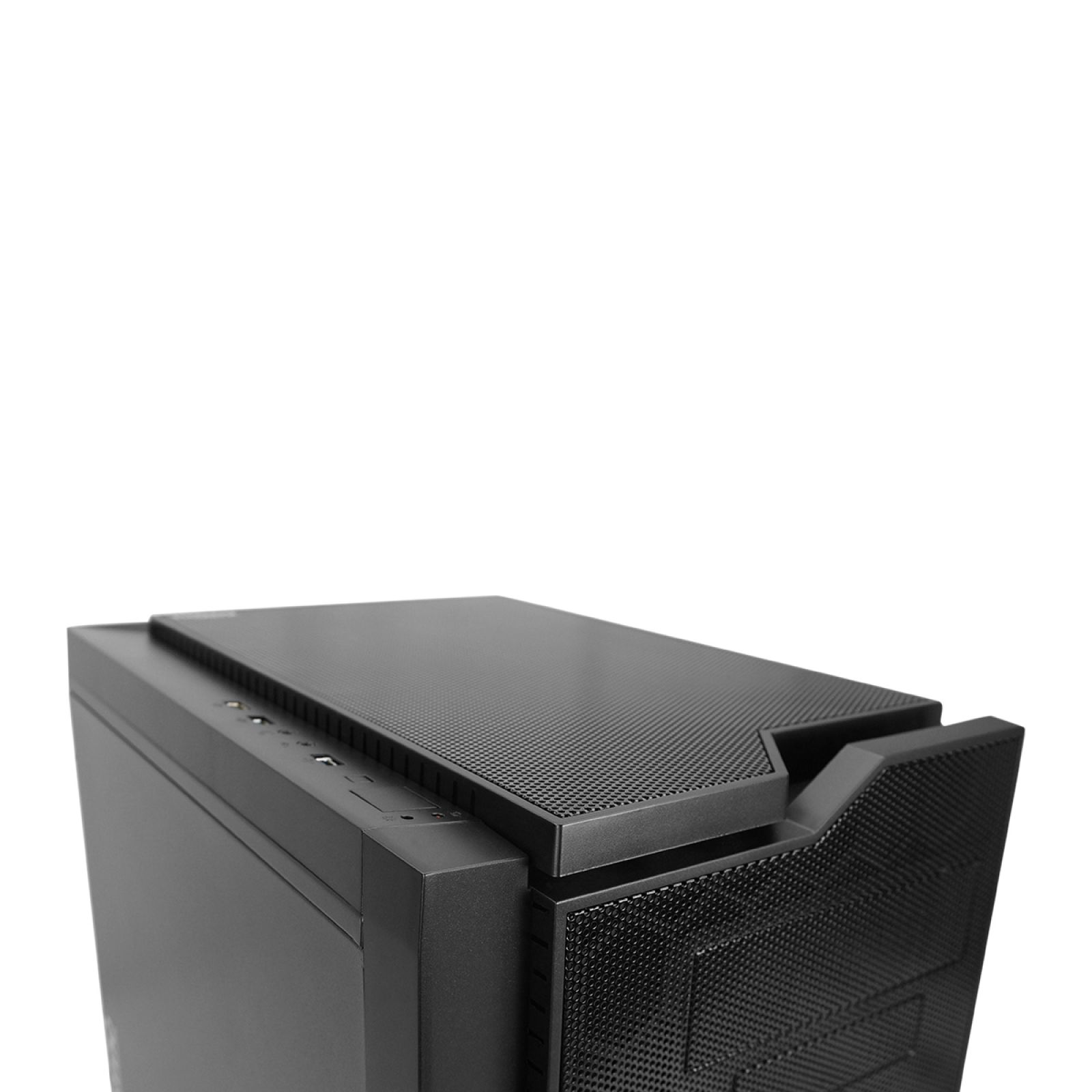

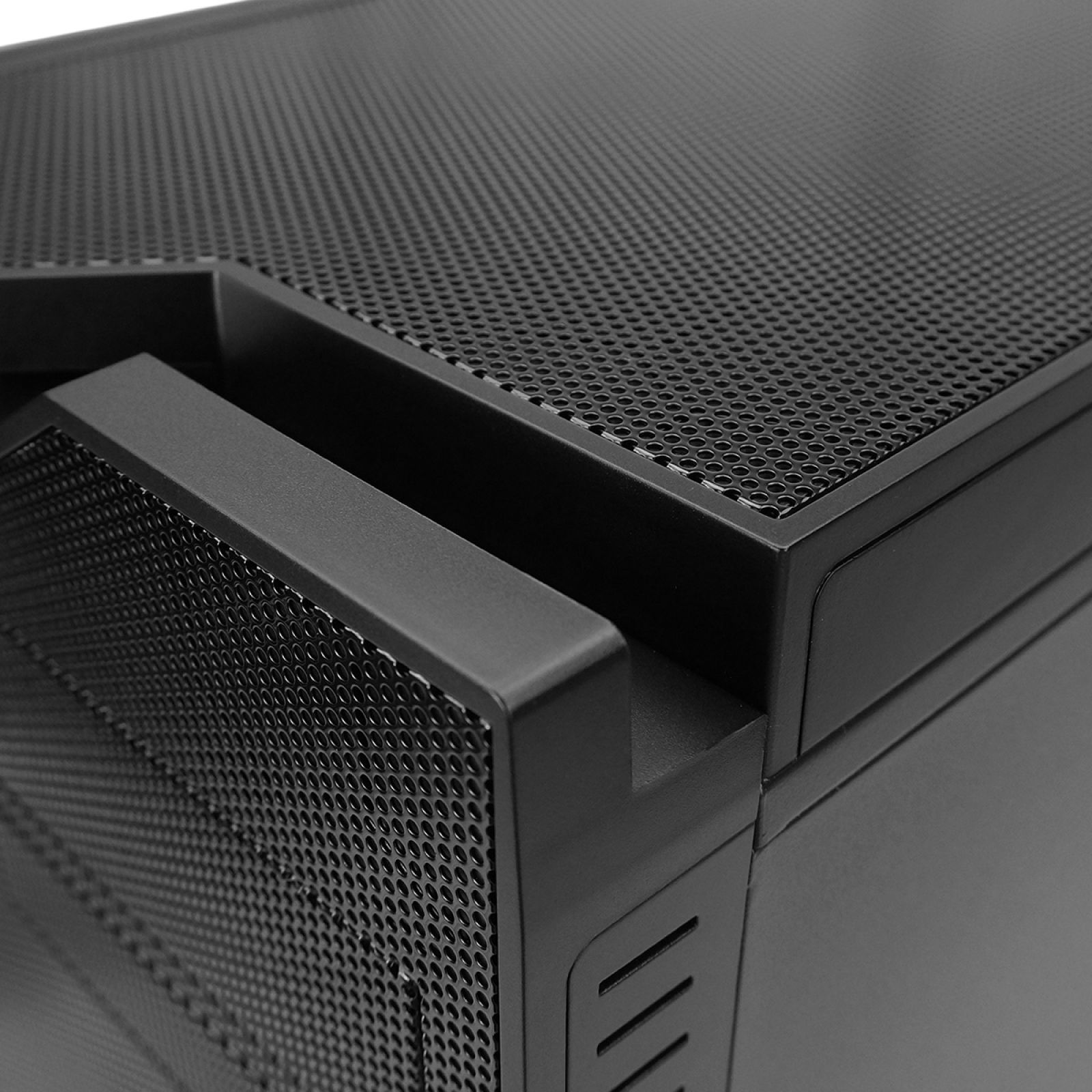

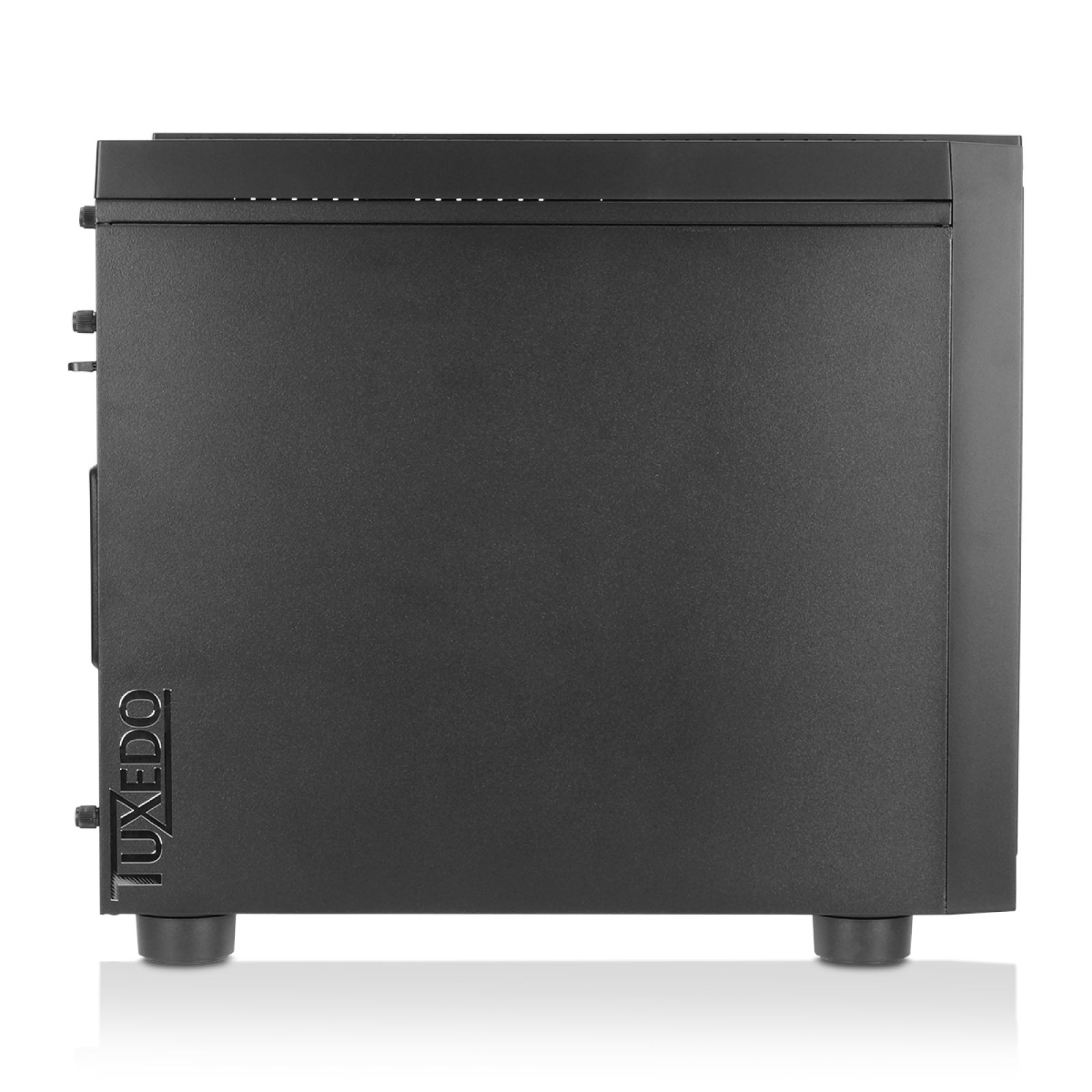

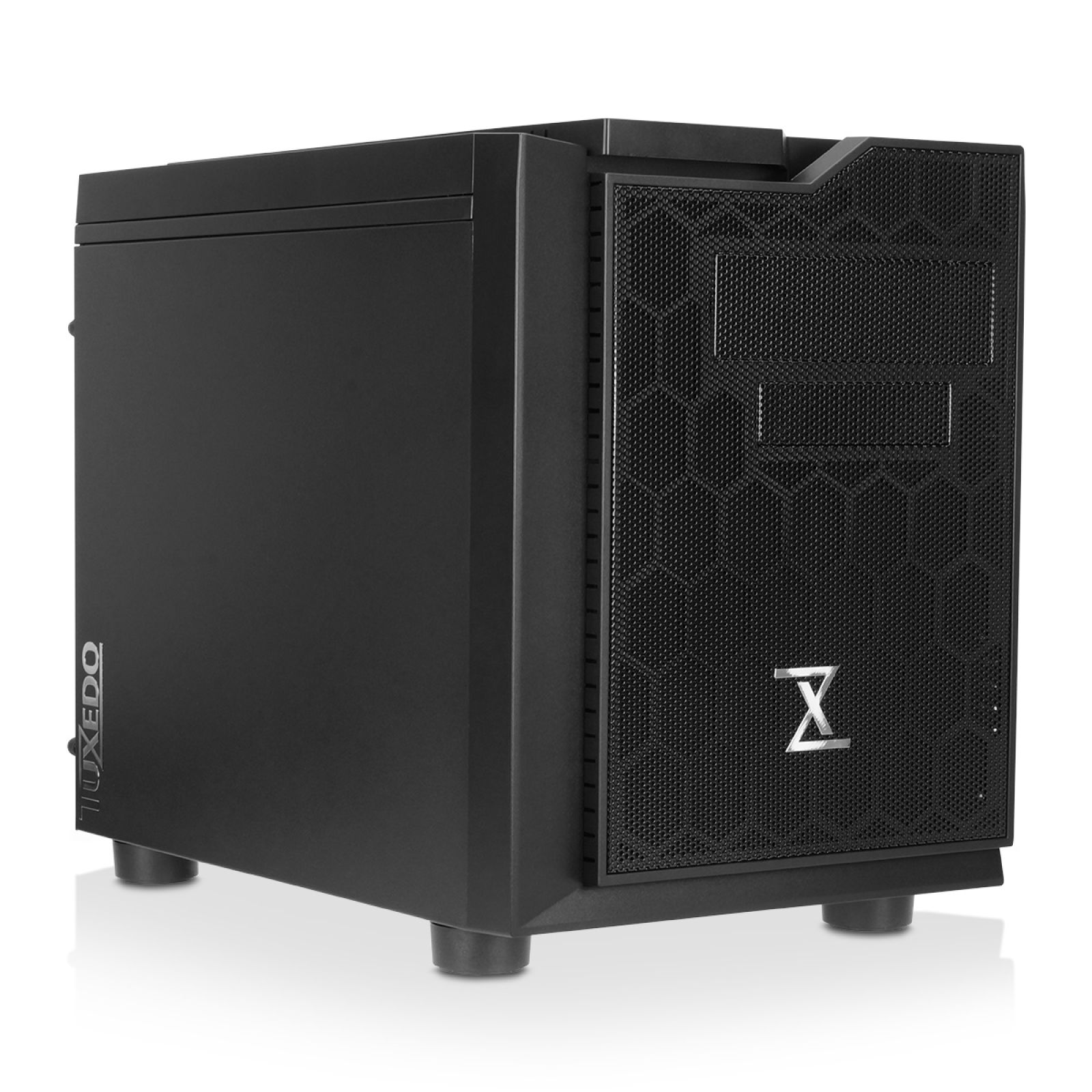

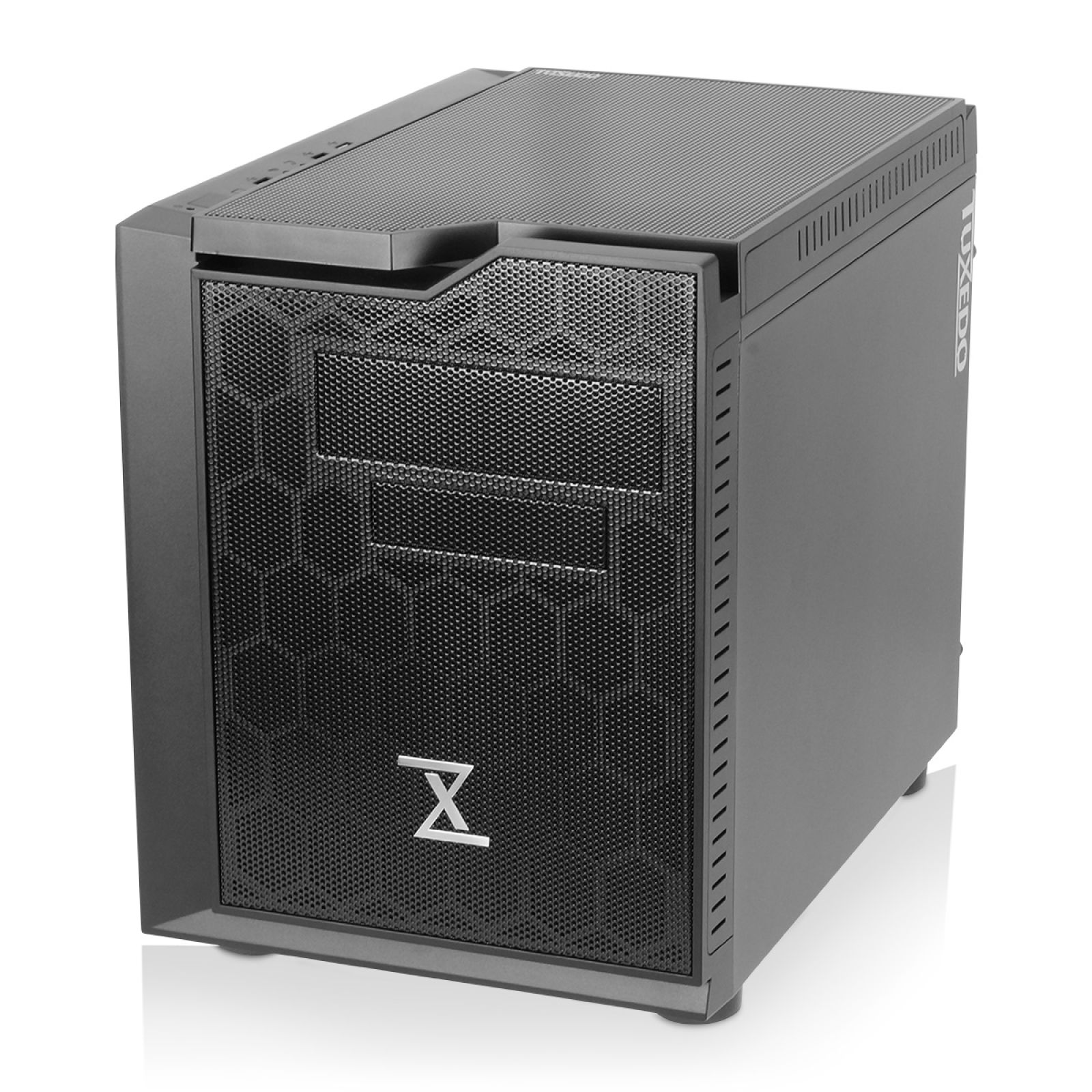

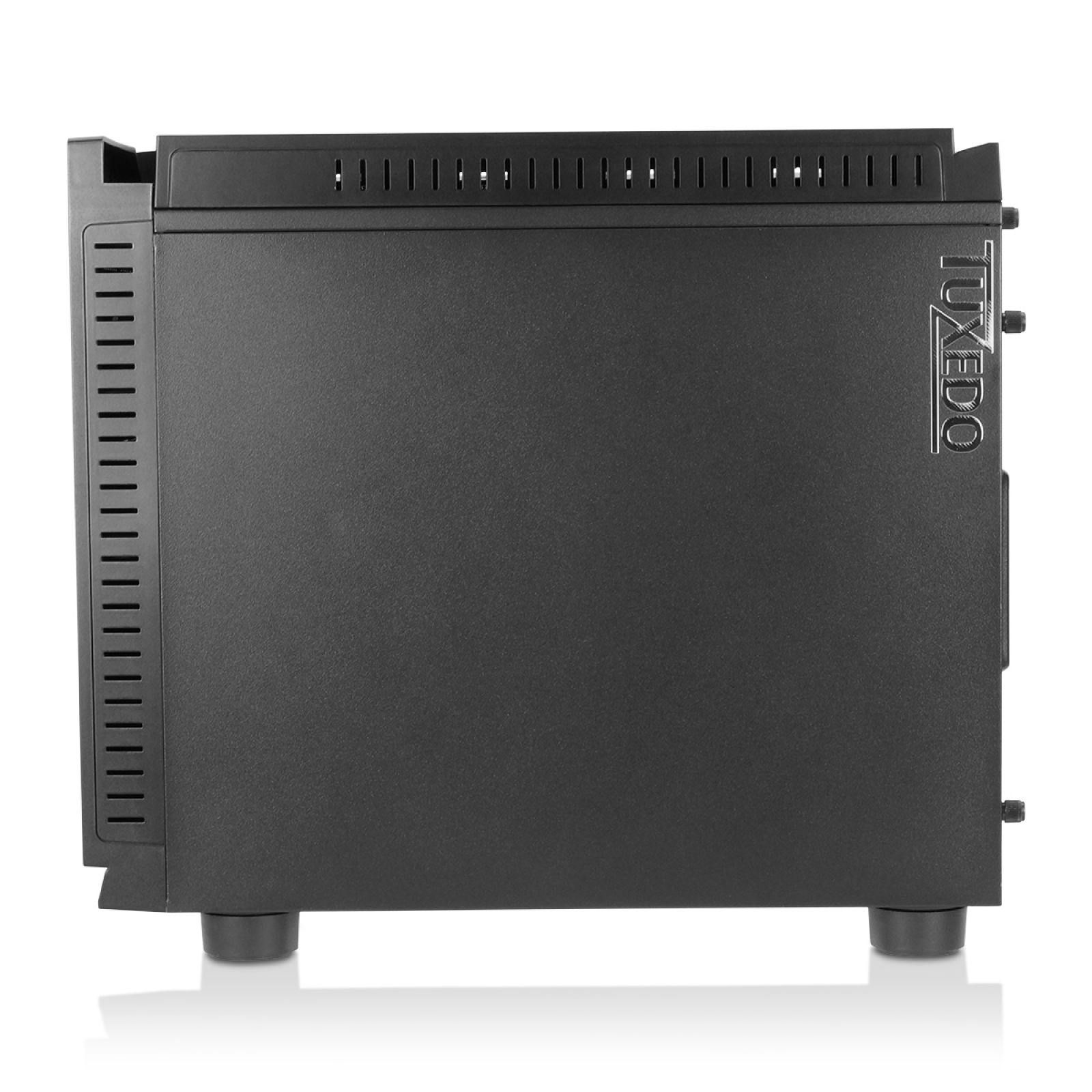

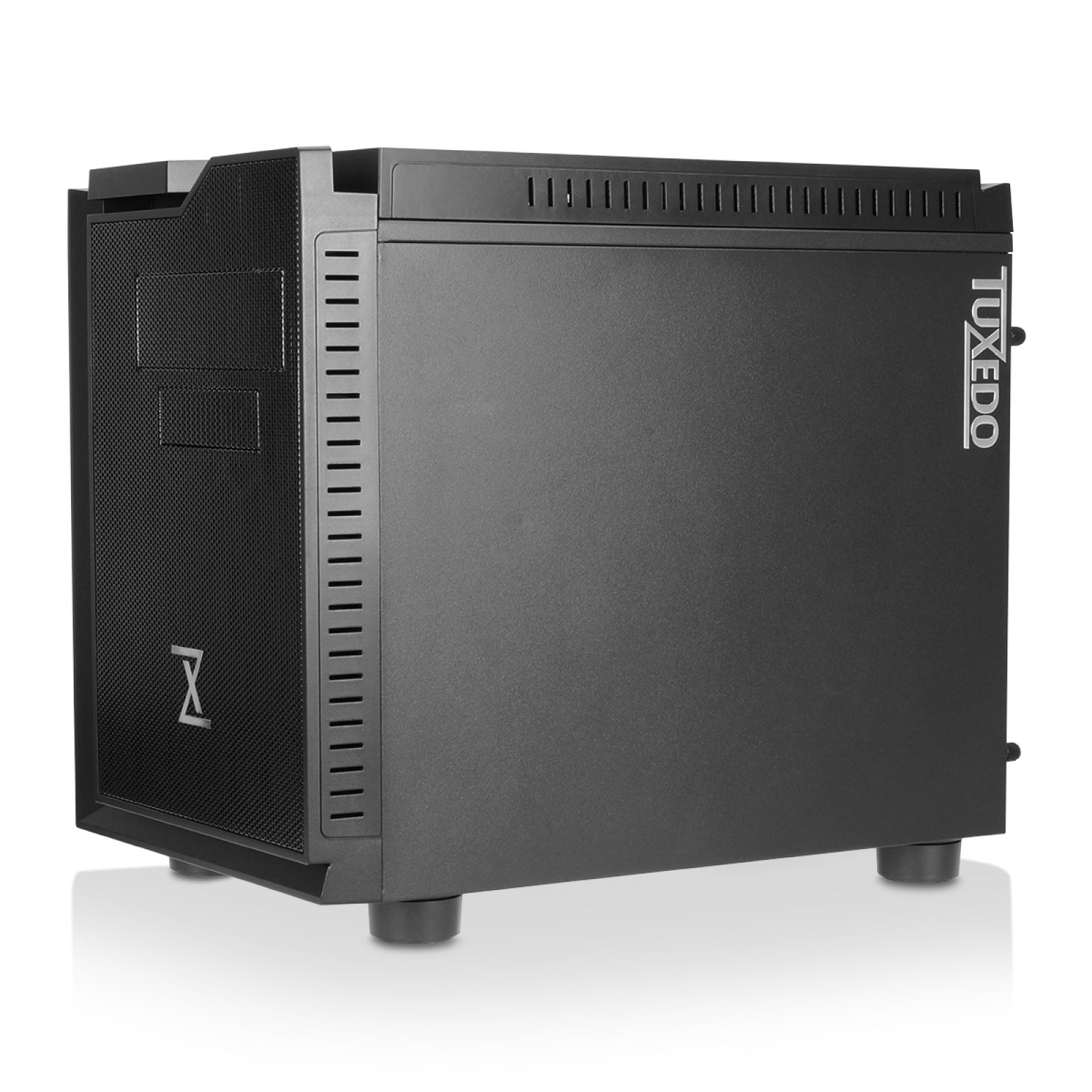

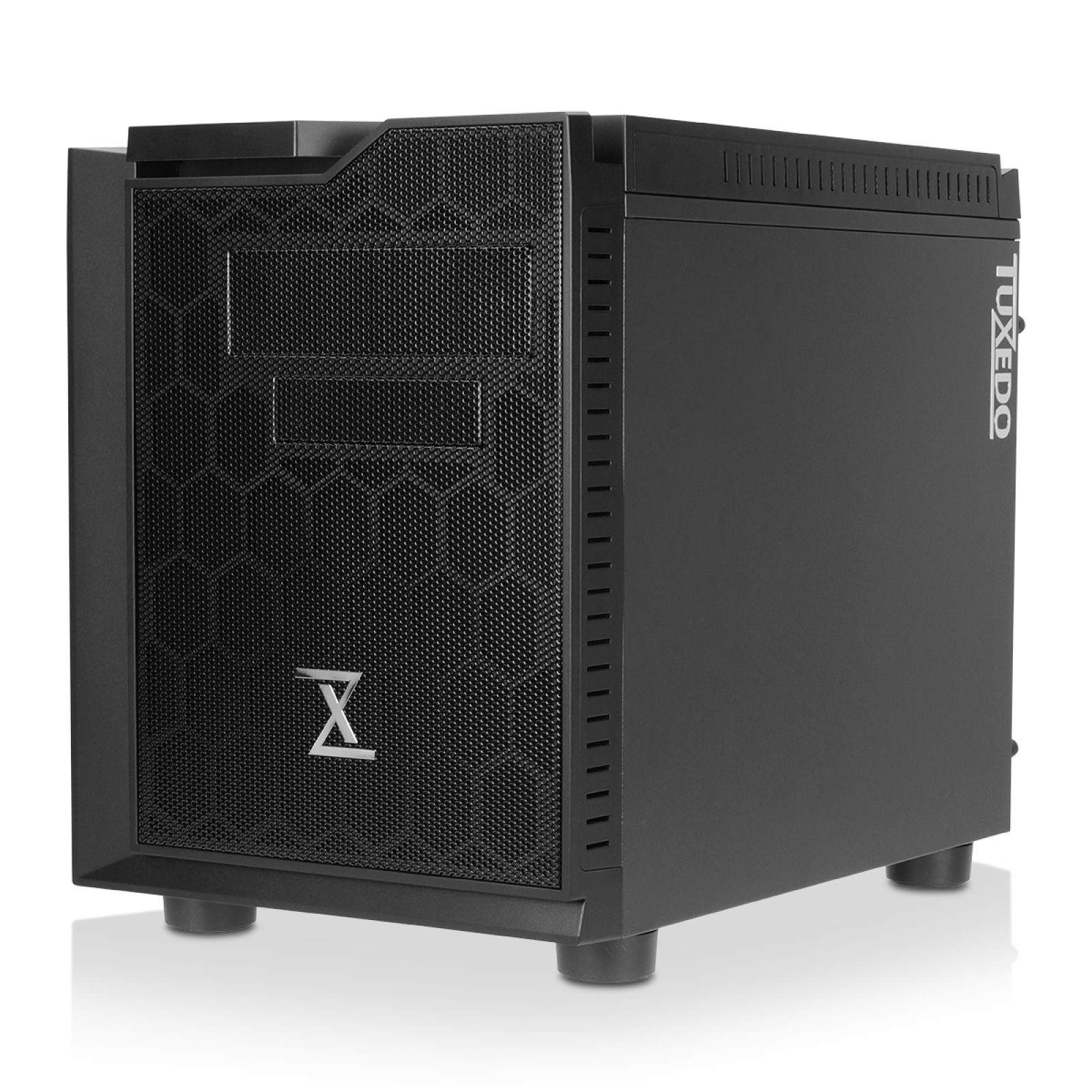

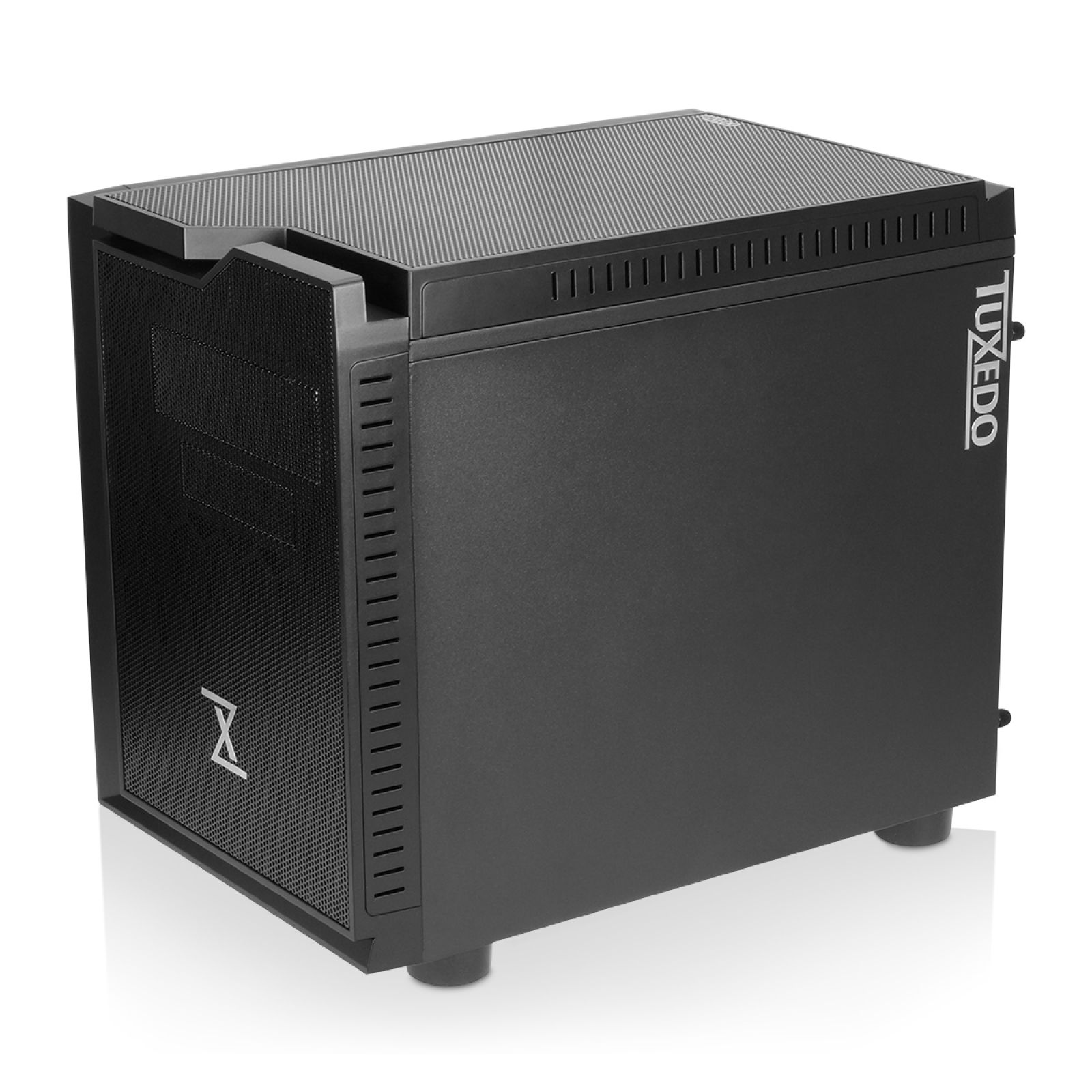

Chassis
High-quality processed noble housing:
- only 41,0cm deep, 17,5cm wide and 35,8cm high
- For larger housings see TUXEDO CORE Six
Power supply:
Manufacturer: Seasonic / Xilence (Bequiet)
Certification: 85+ Gold
Voltage: 100-240V
Power output: Individually depending on hardware equipment
Power usage: depending on hardware and system load
Noise level: Temperature controlled 14cm Ultra-Silent fan
Noise growth / Cooling / Ventilation / Fan
Temperature controlled silent fan!
At low system workload/stress there is less heat emerging. The cooling system fans have to spin accordingly fast or slow or even turn themselves off completely. But the device doesn't produce any disturbing noises even at full load, no high frequency sounds or clatter, just air swooshing.
Mainboard
Mainboard:
Manufacturer & Chipset: AMD B550
256 Mbit AMI UEFI BIOS
Form Factor: Micro ATX (24,4 x 24,4 cm)
Network / Ethernet / LAN
1x LAN:
- 1x 2.5 Gigabit Realtek (2.5 Gbit / 1 Gbit / 100 Mbit)
- Supports Wake-On-LAN
- Supports PXE, etc.
Sound / Audio:
7.1 CH HD Audio (Realtek ACL1200 Audio Codec)
- High Definition Audio
- 2/4/5.1/7.1-channel
- S/PDIF Out

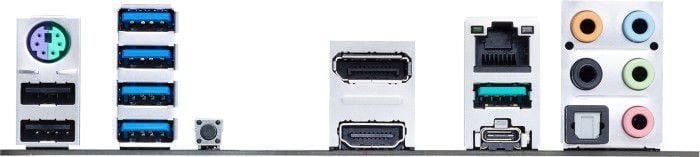

Rear Mainboard connectors:
1 x RJ-45 LAN Port mit LED (ACT/LINK LED und SPEED LED)
1 x DisplayPort 1.2
1 x HDMI Port 2.0
1 x USB-C USB 3.2 Gen2 10GBit/s (abwärtskompatibel)
1 x USB-A USB 3.2 Gen2 10GBit/s (abwärtskompatibel)
4 x USB-A USB 3.2 Gen1 5GBit/s (abwärtskompatibel)
2 x USB-A USB 2.0
1 x Optical S/PDIF out
1 x Flash Button
1 x PS/2
5 x Audio Ports: 1x Line in; 1x Front Speaker; 1x Rear Speaker; 1x Subwoofer; 1x Microphone in
Mainboard connectors internally (partially populated by your configuration):
4 x DDR4 DIMM-Sockel (max. 128GB)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1
2 x M.2 Socket
1 x SPI TPM header 4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector
Storage connectors:
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
4 x SATA3 6Gb/s ports
Ports

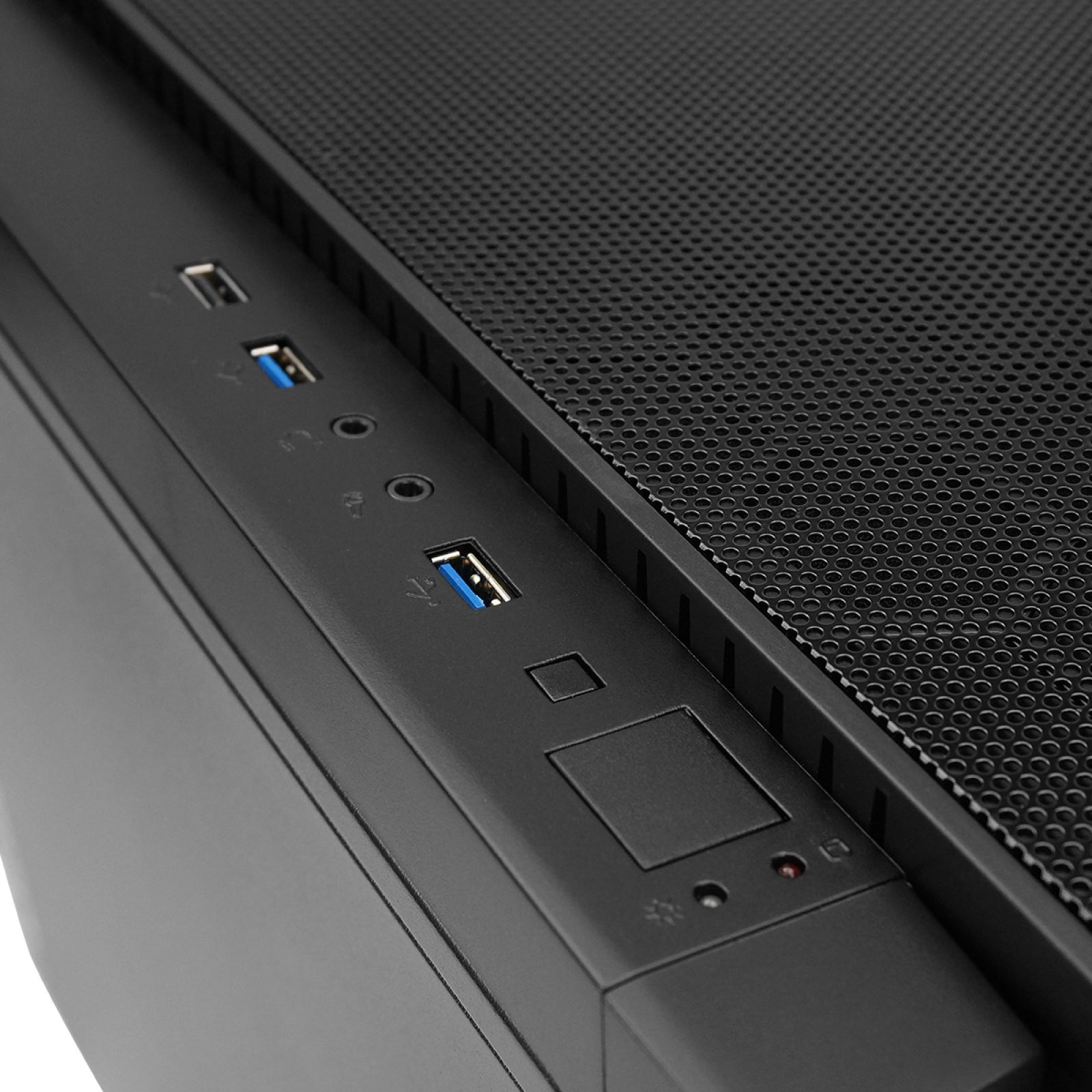

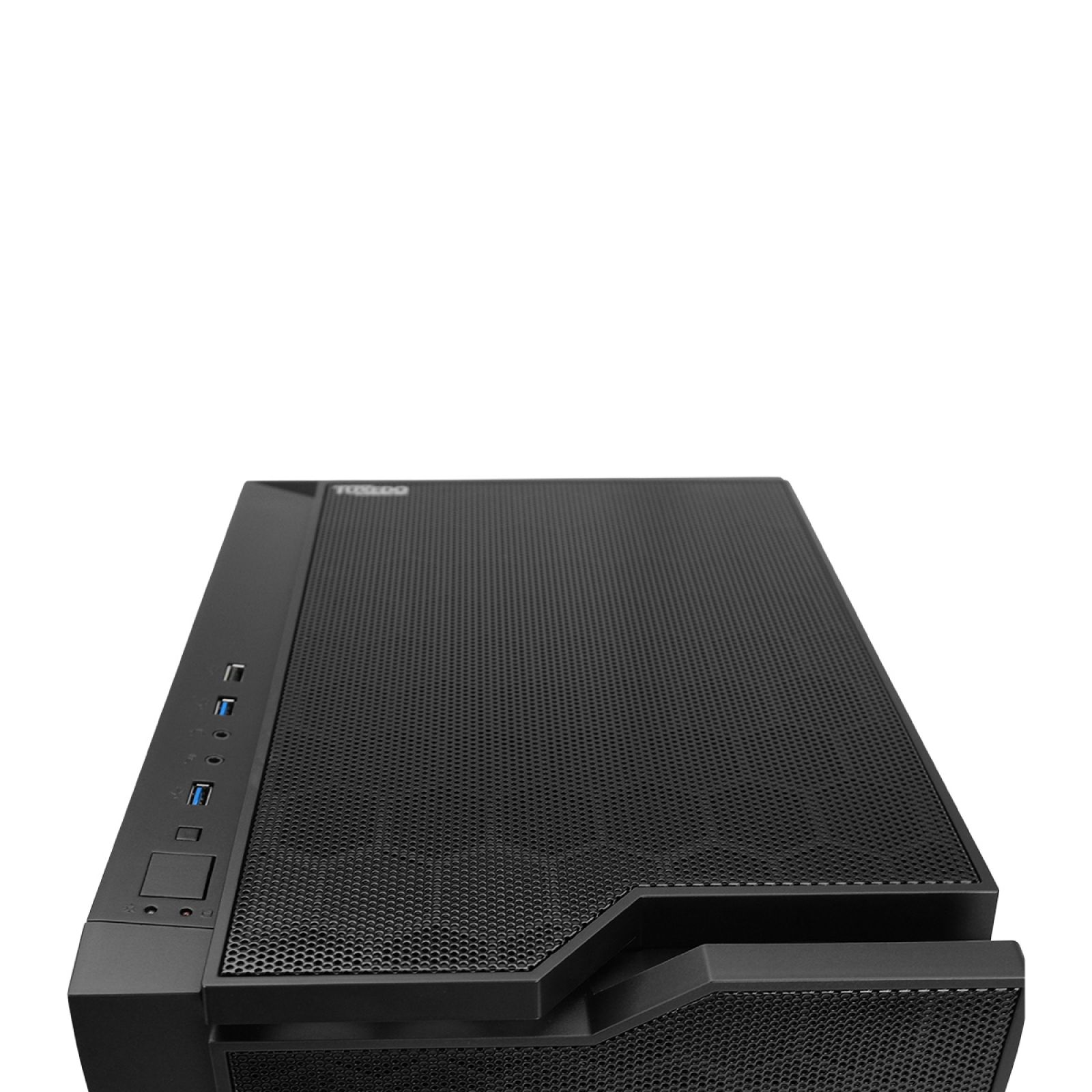

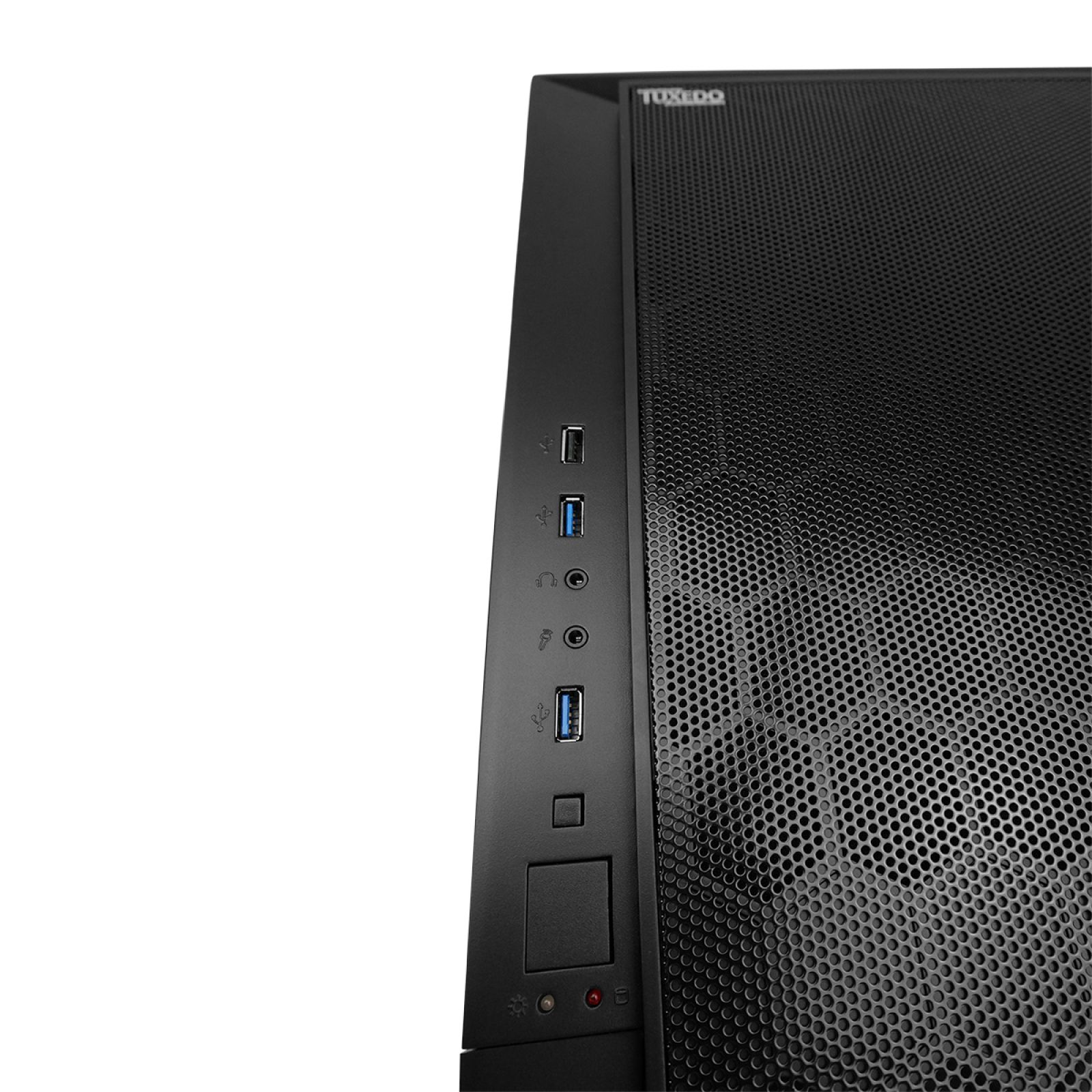

Front:
2 x USB 3.0
1 x USB 2.0
1 x Headphones
1 x Microphone
Main processor
AMD Ryzen 5000-Series
Graphics card
The processor does not include an integrated graphics chip, so it is supplemented by a powerful NVIDIA GeForce or AMD Radeon RX graphics card.
Please refer to the configurator for details about these cards.
Memory
Type: DDR4 DIMM
Manufacturer and speed see configurator
Default and maximum see configurator
Dual channel mode (with 2 modules)
Hard drive
Mass storage as HDD or SSD
Drive:
CD/DVD burner & drive or
Blu-Ray burner & drive (incl. CD/DVD reading & burning feature)
Operating systems
We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.
With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.
For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:
Encrypted Installation
On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
Further details as well as a detailed introduction to encryption can be found here.
Windows on request
If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!
Windows Drivers
The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.
Warranty
2 years pick up and return (12 months on wearing parts like battery & power supply)
Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)
All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course even after expiration of your warranty period we're offering replacement parts and service for many years!
For warranty cases we'll provide you with free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions
Package Contents
1x TUXEDO preinstalled & configured
1x power cord
1x First steps manual incl. short technical manual
1x Mainboard manual
1x WebFAI USB drive (www.webfai.de) for Linux recovery
1x TUXEDO fan stuff package
