Mainboard:
Hersteller & Chipsatz: AMD B550
256 Mbit AMI UEFI BIOS
Formfaktor: ATX (30,5 x 24,4 cm)
Netzwerk / Ethernet / LAN
1x LAN:
- 1x 2.5 Gigabit Realtek (2.5 Gbit / 1 Gbit / 100 Mbit)
- Unterstützt Wake-On-LAN
- Unterstützt PXE, uvm.
Sound / Audio:
7.1 CH HD Audio (Realtek ACL1200 Audio Codec)
- High Definition Audio
- 2/4/5.1/7.1-channel
- S/PDIF Out

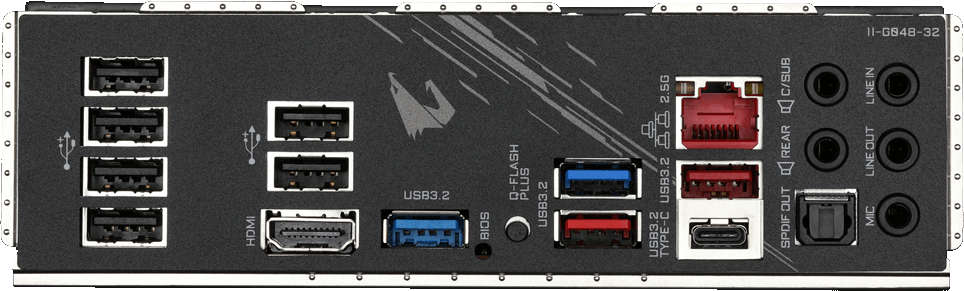

Mainboard-Anschlüsse auf der Rückseite:
1 x RJ-45 LAN Port mit LED (ACT/LINK LED und SPEED LED)
1 x HDMI Port 2.1
1 x USB-C USB 3.2 Gen2 10GBit/s (abwärtskompatibel)
2 x USB-A USB 3.2 Gen2 10GBit/s (abwärtskompatibel)
2 x USB-A USB 3.2 Gen1 5GBit/s (abwärtskompatibel)
6 x USB-A USB 2.0
1 x Optischer S/PDIF out
5 x Audio Anschlüsse: 1x Audio Eingang/Line in; 1x Front Speaker; 1x Rear Speaker; 1x Subwoofer; 1x Mikrofon Eingang
Mainboard-Anschlüsse intern (teilweise durch verbaute Hardware belegt):
4 x DDR4 DIMM-Sockel (max. 128GB)
1 x PCI Express 4.0 x16 Slot, running at x16
1 x PCI Express 3.0 x16 Slot, running at x4
1 x PCI Express 3.0 x16 Slot, running at x2
2 x PCI Express 3.0 x1 Slot, running at x1
6 x SATA 6Gb/s connector(s)
2 x M.2 Socket 3 connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
2 x temperature sensor headers
1 x Thunderbolt™ add-in card connector
1 x Clear CMOS jumper
Festplattenanschlüsse:
1 x M.2 Socket (M2A), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4 x4
1 x M.2 Socket (M2B), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4
6 x SATA3 6Gb/s port(s) (Support Raid 0, 1, 10 for SATA storage!)
